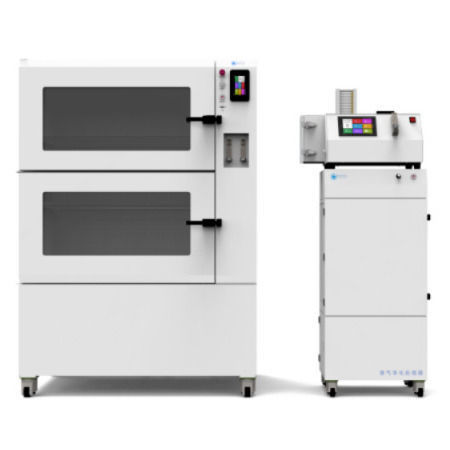

Animal research inhalation chamber WBC-M

veterinary

The chamber and the monitoring module of the animal inhalation exposure system can be separated. The system is used for rats, rabbits, NHPs, and other animals, and the chamber size can be customized. Product Description The chamber and the monitoring module of the animal inhalation exposure system can be separated. The system is used for rats, rabbits, NHPs, and other animals, and the chamber size can be customized. Features The chamber adopts an aluminium alloy frame and transparent PMMA material, which is convenient for observation; Stainless steel material is optional; It has a ventilation function to ensure the oxygen supply of animals and prevent the accumulation of CO2 and unpleasant odour Built-in fan mixer to ensure consistent aerosol concentration in the chamber An integrated sensor module can monitor parameters in various ways. Volume:180L Dimensions: 700×580×620mm Accommodates 2 large rat cages or 4 medium rat cages Other sizes are available to customize Configuration Animal Inhalation Exposure System (Model: WBE-B) • Chamber • Aerosol generators (optional: dry powder, liquid aerosol generator, cigarette smoke generator, diesel exhaust generator…) • Monitoring system for temperature, humidity, oxygen, carbon dioxide gas source and flow regulation system • Exhaust gas treatment systems • (Optional) Aerosol concentration monitoring, particle size distribution detection, etc
