Pressure sensor

for animal researchminiature

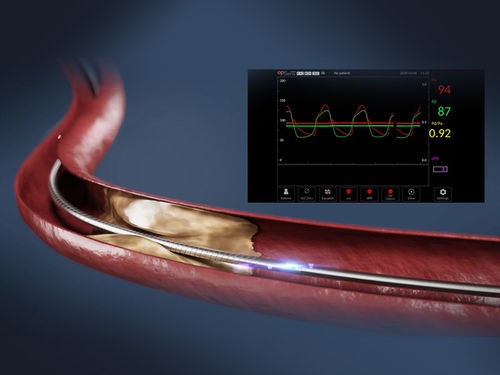

The solid-state pressure conduit gauge uses an advanced miniature physiological optical fibre pressure sensor. This sensor uses MEMS technology to monitor pressure in life sciences or medicine. Its diameter is only 0.25mm and can be used directly in conduits, wires, endoscopes, and other devices. The invasive physiological pressure measurement can be completed with minimal trauma. The miniature physiological optical fibre pressure sensor solves the problem of moisture drift in traditional optical fibre and simultaneously makes the zero drift very small. Product Features High Accuracy High Quality Minimally Invasive Smaller conduit size, less trauma Compatibility Compatible with MR, RF, MW, and EM environments Miniaturization Integrated into the conduit Compact size, sturdy and durable Good accuracy and reliability Unaffected by EMI/RFI microwaves Super safe Applications-Physiological Pressure Measurement Intravascular pressure measurements Urodynamic study and measurements Intracranial pressure measurements Intrauterine pressure measurements Intraocular pressure measurements Intra-aortic balloon pump pressure measurements Research and development of the conduit and wire Cardiac assist measurements Electrosurgical measurements Parameters Number of Channels - 1 Diameter - 0.25mm Range - -50 mmHg to 300 mmHg relative to atm. (wider range also available) Resolution - 0.5 mmHg (no averaging) Accuracy - 1% FS or 1 mmHg (whichever is greater) Sampling frequency - 250 Hz standard Storage temperature - -40 °C to 70 °C Usage temperature - 0 °C to 45 °C Humidity - 95 % non-condensing Light work life - 40 000 hours MTBF
