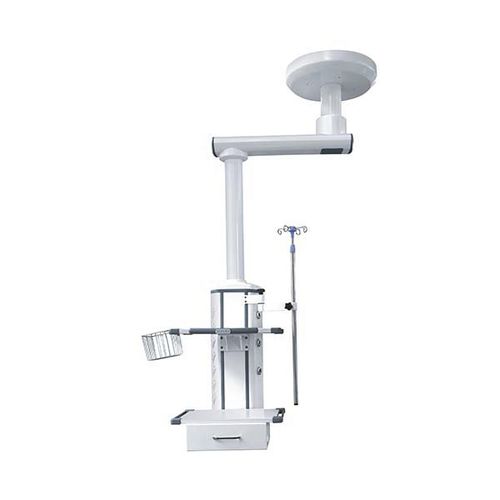

Medical pendant TD-100

ceiling-mountedanesthesialaboratory

TD-100, this model refers to a single-arm mechanical surgical medical pendant. The standard configuration for gas outlets is 2x O2, 2x VAC, lx AIR. It mainly used to provide electrical transmission, gas transmission and data transmission services, and place medical equipment. The length of the rotating arm can be customized. Both the box body and the arm body can rotate within 350 degrees. Add exhaust gas and nitrogen oxide interface, which can be upgraded to anesthesia medical pendant. Feature 1. Customized Rotating Arm The length of the rotating arm can be customized. The option is ranging from 600mm to 1200mm. 2. Easy Moving and Positioning Extension arm and the box body is rotatable around its horizontal axis up to 350 degrees. 3. High-strength Aluminum Alloy Material Arm body and box body both are all made of high-strength aluminum alloy material. Fully enclosed design with minimum thickness of 8mm or above. 4. Double Brake System The standard configuration is electromagnetic brake and mechanical brake, dual brake system, to ensure that the cabinet does not drift during the operation. We do not recommend the use of pneumatic brakes. Although it can prevent accidental rotation of the cabinet, there is a risk of air leakage. 5. Strong Bearing Capacity For the equipment shelves, it has a strong bearing capacity of 250kgs. After long use under full load, there is no deformation.
