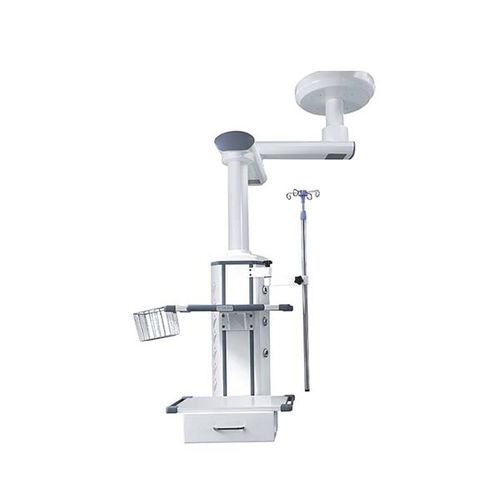

Medical pendant TS-100

ceiling-mountedanesthesialaboratory

TS-100, this model refers to a double arm mechanical operation pendant. Double-arm design increases the activity space of the medical pendant. The length of the rotating arm can be customized. Both the box body and the arm body can rotate within 350 degrees. Add exhaust gas and nitrogen oxide interface, which can be upgraded to anesthesia medical pendant Feature 1. Multiple Choice for Double Arm Configuration A wide range of options for main and sub rotation arms. 600+800mm 600+1000mm 600+1200mm, 800+1200mm, 1000+1200mm 2. High-strength Aluminum Alloy Material Fully enclosed arm and box are made of high-strength aluminum alloy profiles, with a minimum thickness of ≥8mm. 3. Environmental protection coating The surface treatment adopts first-class industrial environmental protection paint 4. Double Brake System Pneumatic brakes have a risk of air leakage. With electric and damping dual limit system, ensure no drift and air leakage during operation. 5. Gas Outlets with Different Colors Different color and shape of the gas interface to prevent wrong connection. Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use. And it can be repaired with the air, low maintenance fee. 6. Instrument Tray The instrument tray has a good bearing capacity, and the height can be adjusted as required. It has a silicone anti-collision design, and the drawer is automatic suction type.
