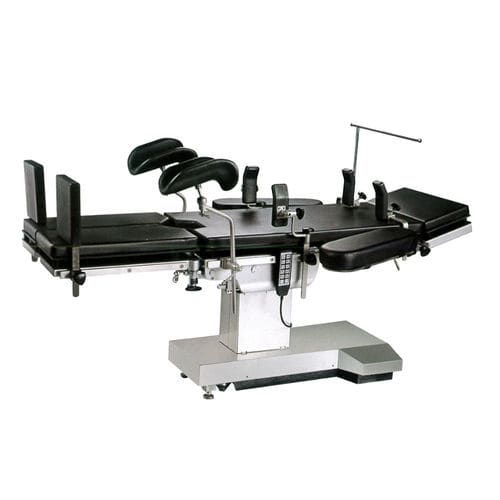

Universal operating table ET500
electricTrendelenburgreverse Trendelenburg

Universal operating table - ET500 - Shanghai Zhenghua Medical Equipment - electric / Trendelenburg / reverse Trendelenburg

Add to favorites

Compare this product

Go to the Shanghai Zhenghua Medical Equipment website for more information

Characteristics

Applications: universal
Operation: electric
Features: Trendelenburg, reverse Trendelenburg
Components: with legrest, with remote control, with armrest
Number of sections: 4-section
Length: 1,960 mm
(77.2 in)
Width: 500 mm
(19.7 in)
Height: 690 mm
(27.17 in)

Description

This series of operating table using micro touch controller, can conveniently operate various preset actions of the whole operating table, can be used for adjusting the head plate, the back board, the seat board and various preset postures and angles, at the same time, this series of operating table has high degree of automation, low noise and high reliability. The key components use imported components, is the ideal operating table. Detailed Technical Parameter Eleevation range(mm) - ≥420 Reverse Trendelenburg - ≥28° Trendelenburg - ≥28° Lateral Tilt(Left&Right) - ≥18° Kidney Bridge Up - 100 Back Plate(Up) - ≥85° Back Plate(Down) - ≥40° Head Plate(Down) - ≥85° Head Plate(Flexible) - / Leg Plate(Electric Up) - / Leg Plate(Electric Down) - / Leg Plate(Manual Up) - ≥15° Leg Plate(manual Down) - ≥90° Leg Plate(manual Outward) - ≥90° Horizontal Sliding(mm) - 340mm Flex - / Reflex - /
