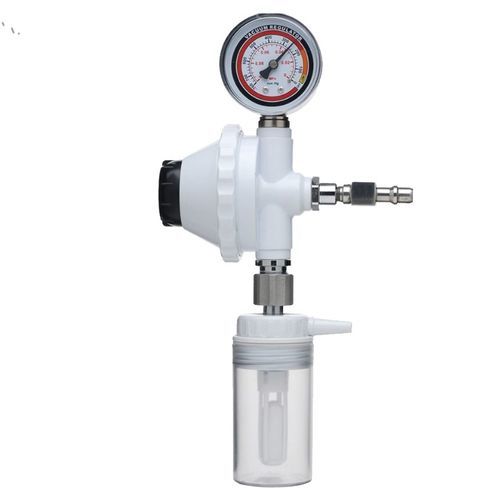

Plug-in type vacuum regulator ZH-BF08

Suction system (passive) negative pressure in the atmosphere is not higher than 0.02Mpa (150mmHg), not less than 0.07Mpa (525mmHg), and can be adjusted within the range. In -0.07Mpa, the maximum liquid flow rate should be greater than 5 L/min; Gas inlet types - 1) gas -specific inlet probe conforming to BS 5682 2) 1/8'' NPT female-threadde inlet 3) Bullnose nipple with 3/8'' BSPNUT. 4) Other country-specific direct and remote-fitting configurations are available- contact the office. Gas outlet types - 1) body has female thread -use BMI 'universal'tubing nipple 2) body has a 9/16'' UNFmale thread -use tubing nipple(oxygen) Advantage - Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select Input pressure - 15Mpa Oxygen flow range - 1-10L/min 1-15L/min Pressure reducing range - 2.0-3.0mpa Relief valve pressure range - 3.5±0.5mpa Output connection screw thread - 8mm Input connection screw thread - G5/8-14-RH, CGA540-RH, G3/4-14-RH Output pressure - 0.2-0.3Mpa Flow rate - 1-10L/min, 1-15L/min; Humidifier capacity - 170ml Valve materrial - brass material of PC bottle - pvb Structure - piston type Delivery Detail - 15 days -- oxygen flow meter with humidifier Dimension - 20PCS/CTN (color box) or other G.W./N.W - 20/19kg Packing - Each sent with plastic bag then in inner box 20 sets/ctn Maintenance checks - three-monthly leak check annual inspection Environmental conditions - store/operate between 5 and 25 degree protect exposed o-rings from light Quality guarantee period - 2 years -- oxygen flow meter with humidifier
