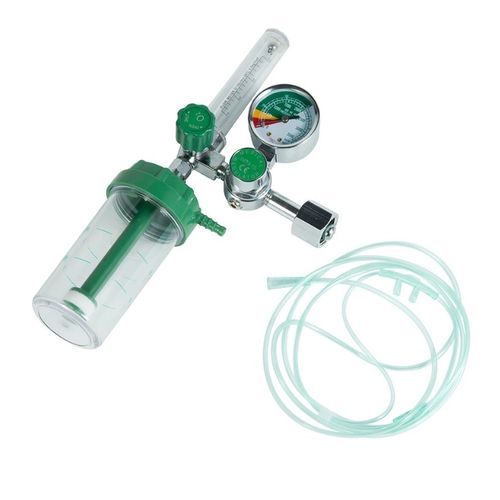

Oxygen flowmeter ZH-BF03

gasplug-in typewith pressure regulator

1. 100% pressure and leak tested. 2. Available in wall type with box, console type on bed head unit and hose barb type. 3. Universal rough-in common for all outlets. 4. NFPA full color standard for easy gas identification. Configuration - single flowmeter -- oxygen flowmeter with humidifierTwin: two flowmeters mounted on a single back bar Gas inlet types - 1) gas - specific inlet probe conforming to BS 56822) 1/8'' NPT female-threadde inlet3) Other country-specific direct and remote-fitting configurations are available - contact the office. Gas outlet types - 1) body has female thread -use BMI 'universal'tubing nipple 2) body has a 9/16'' UNFmale thread -use tubing nipple(oxygen) Advantage - Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select Input pressure - 15Mpa Oxygen flow range - 1-10L/min 1-15L/min Pressure reducing range - 2.0-3.0mpa Relief valve pressure range - 3.5±0.5mpa Output connection screw thread - 8mm Input connection screw thread - G5/8-14-RH, CGA540-RH, G3/4-14-RH Output pressure - 0.2-0.3Mpa Flow rate - 1-10L/min, 1-15L/min; Humidifier capacity - 170ml Valve materrial - brass material of PC bottle - pvb Structure - piston type Delivery Detail - 15 days -- oxygen flow meter with humidifier Dimension - 20PCS/CTN (color box) or other G.W./N.W - 20/19kg Packing - Each sent with plastic bag then in inner box 20 sets/ctn Maintenance checks - three-monthly leak checkannual inspection Environmental conditions - store/operate between 5 and 25 degreeprotect exposed o-rings from light Quality guarantee period - 2 years -- oxygen flow meter with humidifier
