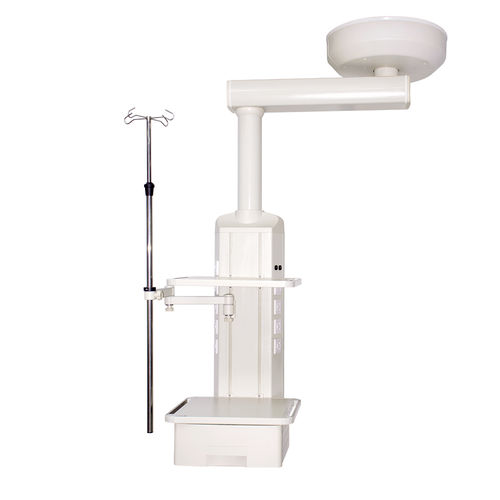

Medical pendant EX-50I

ceiling-mountedanesthesiaendoscopy

1. Apply in operating room, endoscope room, anesthesia room and hospital wards so on 2. Available in single and double arm configurations. Each joint has a rotation range up to ≤350 degree. 3. Ceiling Type 4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device. 5. One arm, can rotation, rotation angle≤350 degree. 6. High-strength aluminium alloy, wear-well reduce your cost 7. Pendant Color Blue, Red and so on 8. Pendant Dimension can customize 9. Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards. 10. Can horizontal rotation, cannot lift Specification Material - Used high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting, Prevent corrosive, easy to clean. - Low maintenance Brake way - Damping Friction Brake, to make sure without drifting and easy to stop, insure safe. - Pneumatic is optional Rotary arm length - 1000mm (standard configuration) - Length is optional Rotary Radius - ≥650mm Head Service - Column, Standard Height 800mm - Height is optional Loading - ≥180kg - Shelf loading - ≥60kg - Degrees rotation - ≤350 º Standard Configuration Shelf - 2 pcs - Drawer - 1 pcs - I.V Pole - 1 pcs - Extension arm - 1 pcs Gas outlets - Surgical Pendant O2*1, Vac*1, Air*1 Anesthesia Pendant O2*1, Vac*1, Air*1, N2O*1, AGSS*1 Endoscopy Pendant O2*1, Vac*1, Air*1, CO2*1 Electrical socket - 6pcs (220V 10A) Other Configuration Optional RJ 45 - Quantity is optional according to hospital need Video Socket - Quantity is optional according to hospital need
