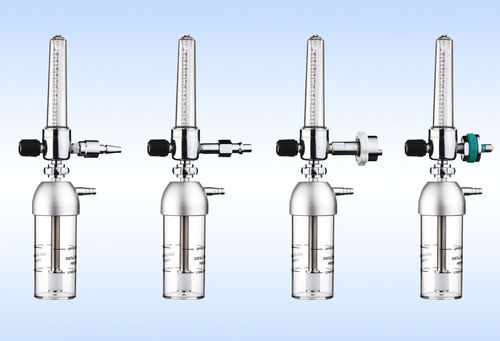

Medical gas flow meter

for hospitalsplug-in typewith pressure regulator

When inhaled liquid to a safe drip bottle capacity of maximum calibrated set or liquid bottle filled with safety drip bottle ,float should seal the suction port and automatically stopping the suction to prevent the suction of the liquid is drawn into the negative pressure regulating valve and the negative pressure piping systems Suction system(passive) which the rate average of leakage caused by pressurization must be less than 1.8% per hour. Standard Configuration Twin: two flowmeters mounted on single back bar Gas inlet types - 1) gas -specific inlet probe conforming to BS 5682 2) 1/8'' NPT female-threadde inlet 3) Bullnose nipple with 3/8'' BSPNUT. 4) Other country-specific direct and remote-fitting configurations are available- contact the office. Gas outlet types - 1) body has female thread - use BMI 'universal'tubing nipple 2) body has 9/16'' UNFmale thread - use tubing nipple(oxygen) Advantage - Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select Output connection screw thread - 8mm Input connection screw thread - G5/8-14-RH, CGA540-RH, G3/4-14-RH Humidifier capacity - 170ml Valve materrial - brass material of PC bottle - pvb Structure - piston type Delivery Detail - 15 days -- oxygen flow meter with humidifier Dimension - 20PCS/CTN (color box) or other Packing - Each sent with plastic bag then in inner box 20 sets/ctn Maintenance checks - three-monthly leak check annual inspection Environmental conditions - store/operate between 5 and 25 degree protect exposed o-rings from light
