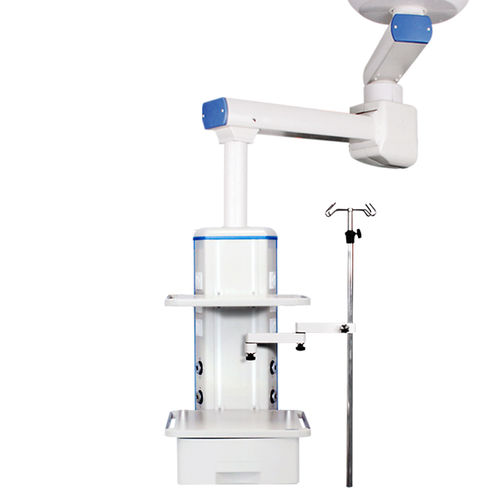

1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on
2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.
3. ceiling
4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. one arm, can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,wear-well reduce your cost
7. pendant color blue ,red and so on
8 pendant dimension can customize
9. medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
10. can horizontal rotation ,cannot lift
Rotary arm length: 750-1000mm (customer can customize arm length)
Rotary radius: ≥750mm
Net loading capacity: ≥180kg
Equipment shelves loading capacity: ≥60kg
Standard configuration: O2*1 ,Air*1,Vac*1,socket*6,tray*2,drawer*1
Standard optional: Level degrees rotation≤340 º
Terminal box≤340 º
Box length≥700mm Length is optional
