Electric veterinary operating table

hydraulicfor large animalsfor pets

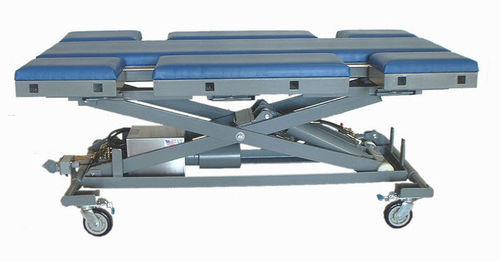

The Dorsal/Lateral Scissor Base Equine Table was introduced in 1990 and combines the scissor-type lifting concept of the original Floor Model Surgery Table with the multi-section table top originally introduced on the Cylinder Base. The Scissor Base is able to achieve a reduced lower height for added versatility to the end user. The following features are available on this table: Self contained power unit with hand control hydraulic valve 2-way tilt capability Ability to easily be placed in a stationary position during surgery procedures by retraction of the casters 46" x 84" lateral surface area (117cm x 213cm) 18" x 84" center bed (46cm x 213cm) Versatile multi-section table top surface Lowered height 15-1/2" (39cm) Raised height 48" (122cm) 6" swivel/lock casters Hot dip galvanized/painted coating on structural frame Rated for 2,500 lbs. (1,134KG)
