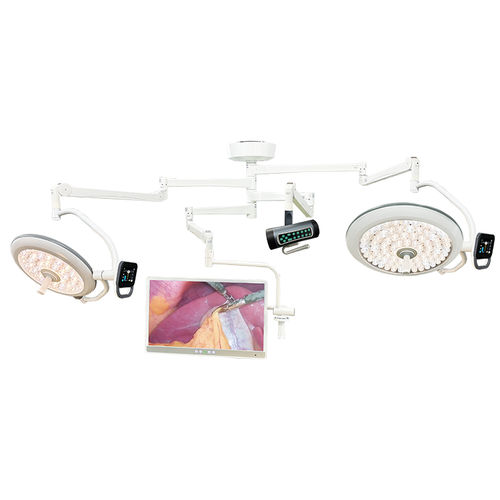

Ceiling-mounted surgical light Ultra thin KS-7050
LED2-arm220V / 50Hz

Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz
Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz
Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz - image - 2
Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz - image - 3
Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz - image - 4
Ceiling-mounted surgical light - Ultra thin KS-7050 - Shantou Easywell Electronic Technologies - LED / 2-arm / 220V / 50Hz - image - 5
Add to favorites
Compare this product


Characteristics

Configuration
ceiling-mounted
Light source
LED
Number of arms
2-arm
Power source
110V / 60Hz, 220V / 50Hz, 230V / 50Hz
Color rendering index
96, 97, 98
Options
with control panel, with video camera, with video monitor
Power

110 W

Max.: 110 W

Min.: 100 W

Intensity at 1 m

160,000 lx

Max.: 160,000 lx

Min.: 140,000 lx

Color temperature

4,500 K

Max.: 5,000 K

Min.: 3,500 K

Lifetime of bulbs

60,000 h

Max.: 60,000 h

Min.: 50,000 h

Description

1. Ultra-Thin Innovative Design Ultra Thin Series lamp head design optimizes surgical space and minimizes interference. Multiple installation options: wall-mounted/mobile/ceiling-mounted (KS-500UT/KS-700UT series). 2. Advanced LED Cold Light Technology Long lifespan & energy-saving: New LED cold light source lasts 60,000 hours (3x traditional lights) with low power consumption. Low-temperature safety: Lamp head temperature ≤45°C, preventing tissue thermal damage. Superior color rendering: Color temperature 3500-5000K (natural sunlight-like), CRI Ra≥98 for true tissue color reproduction. Adjustable brightness and color temperature for different surgical needs. 3. Shadowless & Deep-Cavity Illumination Multi-LED synergy technology: 70mm large lamp head (KS-7050UT) with 132 LEDs, center illuminance up to 140,000 Lux±20%. 50mm lamp head (KS-500UT) delivers 130,000 Lux±20% uniform lighting. Deep penetration: Covers cavities up to 100cm, ideal for neurosurgery, orthopedics, etc. 4. Intelligent Control System 5"/10" touchscreen: Wireless handheld/wall-mounted control for brightness, color temperature, and modes (e.g., endo mode). DMX512 synchronization: Multi-light coordination to eliminate shadows. Emergency backup: Optional battery ensures uninterrupted lighting. 5. 4K Imaging Integration (Optional) SONY camera system: 1/2" CMOS sensor with 4K UHD output to medical monitors/SDI-DVR. Dual-camera design: Switch between built-in/external cameras for open or endoscopic procedures. 6. User-Centric Details Motorized focus: Adjustable spot diameter (D10=280-300mm±35mm) for precision.
