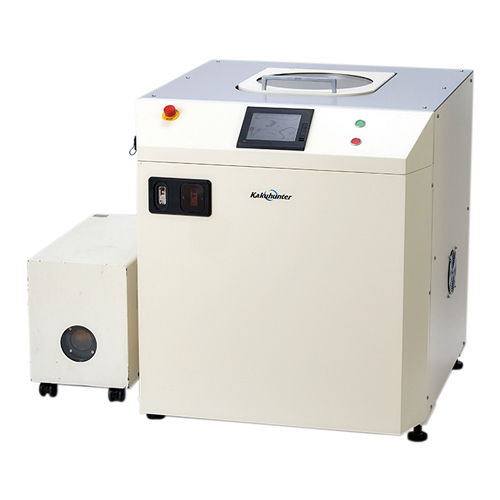

Centrifugal mixer SK-1100TVIII

revolvingfor dental laboratoriesindustrial

Applicable to motion mixing and degassing of various kinds of materials for a wide range of uses across a variety of industrial fields A model with a vacuum reduced pressure function suited for medium-scale production. The individual revolution and rotation speed control system and wide radius gyration generate centrifugal force even at low revolving speeds, sustaining material of thermal elevation and composition change. 2 types of cup trays are available: straight (SK-1100TVIII) and shifted (SK-1100TVSIII), selectable according to the purpose. While the straight type prioritizes throughput of materials, the shifted type offers improved mixing capability as compared to the straight type by increasing the contact part between the container inner wall and material. * The effect differs depending on the material. Select the type according to the required throughput and mixing performance. Container specification - 1100ml × 2cup, Maximum 1kg (Gross Weight)x 2cups Less than 100cc various syringe type available Less than 180cc various cartridge type available Other containers - Multiple containers and syringes can be used by using an adapter. Number of revolution - 9 Stage setup Number of rotation - 10 Stage setup (But it can be restricted up to revolution speed) Setup time - Maximum 25 minutes (5 Step total, 1 step max is 900 seconds) Step Mode - 5 Step 5 different kinds of motion pattern It can do continuous operation (on condition setup) Memory (Condition memory function) User Setup Channel 90 CH Fixed Data Channel - 10 CH Power supply - Three phase AC200V-240V±10% 50/60Hz Three phase AC385-415V ±10% 50/60Hz (selectable) Power consumption - 3.0kW
