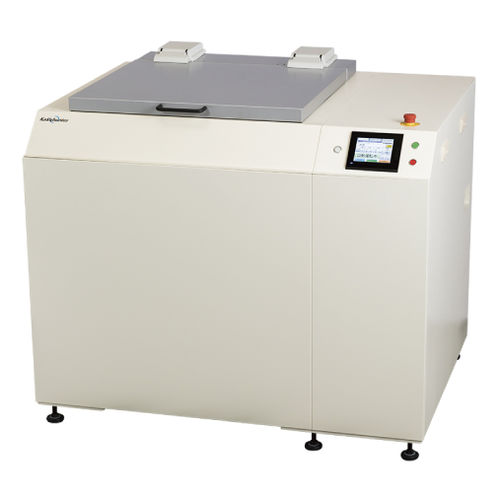

Industrial mixer SK-4000TV

for dental laboratoriesfor chemical productsbenchtop

Applicable to motion mixing and degassing of various kinds of materials for a wide range of uses across a variety of industrial fields Application LED FPD Circuit Boards Functional Films Secondary Cells Photovoltaic Cells Fuel Cells Nano Particles Functional Inks Polishing Materials Ceramics Other Material Sealing Materials Adhesives Conductive Paste Coating Materials Carbon Materials UV Paints Powders Other New released mass production model 10kg for non vacuum or vacuum type up to customer's requirement. : Revolution/Rotation individually speed can be controlled. (Rotation: 0-1.0 times speed changeable) : Max 10kg gross weight (5Kg x 2) throughput mass production model. : Customize model which 4,000ml standard container as well as specific container can be correspond. Container specification - 4000ml HDPE container or SUS container Max capacity - 5kg(Including container) x 2 cups Rotation speed - 0 -1.0 times against Rev speed, 10 levels Setup time - Maximum 25 minutes (5 Step total, 1 step max is 900 seconds) Step mode - 1- 5 Step Memory Channel - Fixed CH: 10CH User settable CH: 90CH Power source - Three phase 200 -240V, 50/60Hz Electric - Max 15KVA consumption Outer dimensionW1,330×D1,010×H1,120 mm (Vacuum pump excluded) Electric Approx. 700kg (Vacuum pump excluded)
