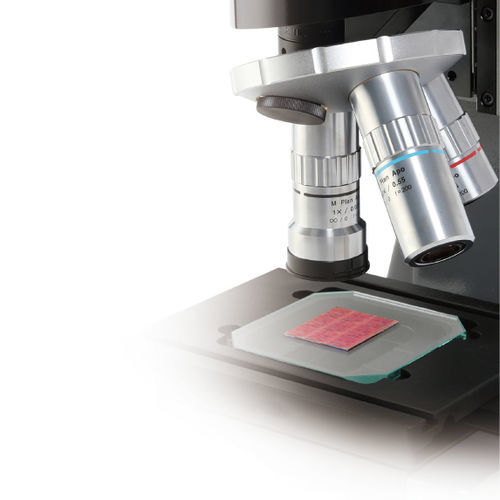

Thickness tester SK-iFTM

medical imagingfor medical applications

Imaging film thickness monitor is a metrology tool that can visualize the film thickness distribution of a transparent multilayer film. It can visualize the film thickness distribution with 0.1nm thickness resolution by using the spectroscopic reflectometry. Visualize film thickness uniformity Measure the film thickness/quality in the microscope field of view, Show the 3D distribution Film thickness resolution : <0.1nm Good thickness resolution equivalent to the spectrometry tools. The wavelength can be selected from 450nm to 750nm with 1nm precision. High speed / Multilayer measurement up to 9 layers Parallel processing by the spectroscopic reflectometry Advanced applications ① Several hundred repeated film such as the Bandpass Interference Filters and Composite multilayer film such as the Trench structure ② Sub micron pattern density estimation using Effective Medium Approximation (EMA) ③ Local area crystallinity evaluation such as Laser annealing Measurement of film thickness distribution in the specified region of the Objective field of view. Measure the 6.6x8.8mm□ area using the 1x obj. Measure the 0.5um spatial resolution using the 50x obj.
