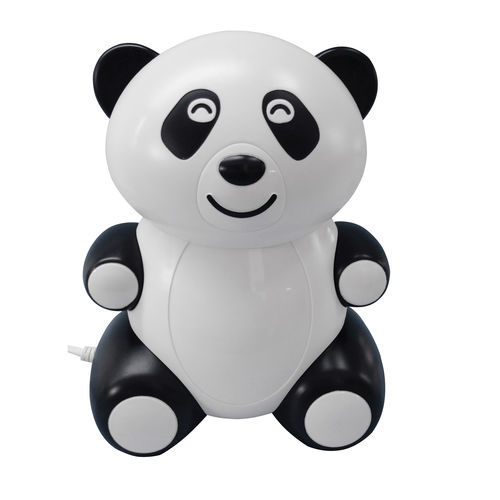

Electro-pneumatic nebulizer A500LW12

for general purposeshand-heldtable

A500LW09 is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled Features: Use hign quality motor, guarantee long time continous works. Dual safety fuse on motor and power cord for more safety. Powerful and silent A500LW05 piston type compressor ( 0.36 Mpa pressure). Produces a high–quality respiratory aerosol with extremely low residual. Built-in nebulizer holder. Specification: Power : 100V@60HZ, 120V@60HZ,230V@50HZ, 220V@60HZ Power Consumption: 180 VA Max Compressor Pressure Range: 29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar Operating Pressure Range : 13 to 19 Psi / 90 to 130 Kpa / 0.9 to 1.3 bar Operating Temperature Range: 10°C to 40°C (50°F to 104°F) Operating Humidity Range : 10 to 90% RH Storage Temperature Range : -25°C to70°C (-13°Fto158°F) Storage Humidity Range : 10 to 95% RH Medication Capacity : 6ml / 10ml (cc) Average Nebulization Rate: faster than 0.3ml/min (2% saline solution)
