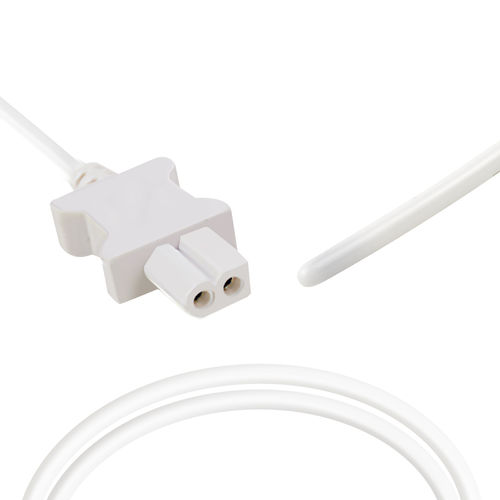

Temperature sensor AMD-DP-AS0010-X

monitoring

Product name: Disposable temperature probe Compatible brand: Wei Rui (thin line) Product specifications: adult body cavity, adult body surface Structure and composition： Composed of resistors, cables and machine end connectors. Working Principle： The temperature measurement is obtained based on the characteristic that the resistance value of the thermistor changes with temperature. Application： It is used in conjunction with compatible body temperature monitoring equipment, and is used for one-time use when collecting and transmitting the patient's body temperature signal. Product performance： Working Condition a.Environment Temperature：10°C～40°C； b.Relative humidity：30%～75%； c.Atmospheric pressure：70kpa～106kpa。 Use performance a.Measuring range: 25°C～45°C; b.Maximum allowable error: ±0.1°C; c.Response time: <150s. Compatible devices: GE Healthcare, YSI, HP/Philips, Siemens, Spacelabs, Mindray, etc. Note: 1) Compatible equipment must meet the standard GB9706.1-2007 / IEC 60601-1: 1998. 2) The application of the compatible device must be BF or CF type. Warranty/Validity Period： Warranty period: None Validity period: 2 years Production date: see product label
