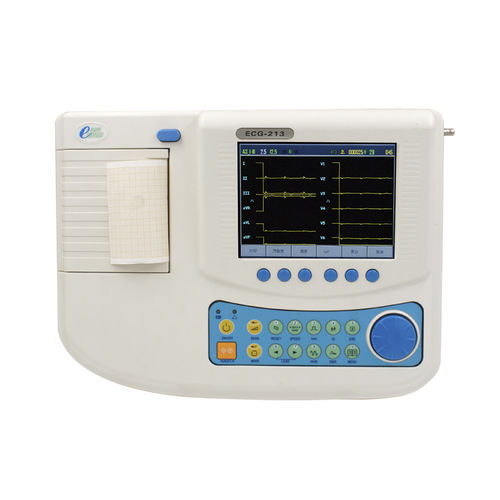

Resting electrocardiograph ECG-213

3-channeldigitalwith printer

With auto-interpretation function; Can assist doctor to diagnose; Color LCD makes the images more clear for guaranteeing the reliability of the images; Designed with technology of digital signal processing and digital isolation; Synchronously 12 lead acquisition and printing 3 live leads record of them, using high resolution thermal roll paper for recording ECG waveform, multiple optional digital filter ( including baseline drift filter ), using auto-regulation baseline drift filter which can inhibit any baseline drift, or curb caused by patient's movement and auto- optimize the position for printing; Auto measurement / analysis system shows the real-time heart rate which makes it easier for doctor's diagnosis; Can store maximum of 128 patients' ECG data and enable user to replay data analyze and print it from database; High-speed USB interface and traditional RS— 232 interface are both built¯ In for communicating with computer as well as other devices; Data can be received through one of the interfaces and displayed by the software which is also provided by our company (optional); Specifications: LCD display: 640× 480 TFT 5.7 inch graphic LCD Lead: Standard 12 leads Sampling method: 12 leads synchronously acquisition Cmrr: >80dB, > 100dB (with AC filter) Sensitivity: Auto; 2.5; 5; 10; 20 mm / mv Paper speed: 6.25; 12.5; 25; 50 mm / s( ± 3%) Paper size: 80mm × 30m roll type Recording mode: Thermal array printing Power supply: AC: 110-230V (± 10%), 50/60 Hz± 1Hz; 40 va DC: 14.4V rechargeable Li-ion battery
