Place of Origin:
Guangdong, China
Certification:
CE
Supply Ability
Supply Ability
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc/bag

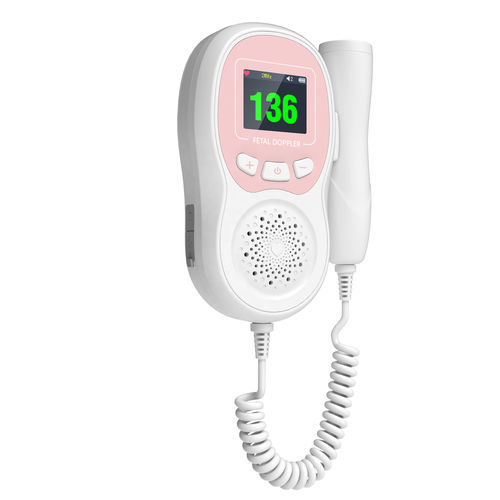

Pocket Fetal Doppler is a hand-held FHR detection device, it is easy to operate, and can be used in hospital,clinic and home for daily self-check by pregnant woman.
It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit, etc.
Dimension: 157mm(L) × 106 mm(W) × 34 mm(H)
Weight: < 300 g
Environment:
Working:
Temperature: +5℃~+40℃
Humidity: ≤80%
Atmospheric Pressure: 70 kPa~l06kPa
Transport and Storage:
Temperature: -10℃~+55℃
Humidity: ≤93%
Atmospheric Pressure: 50 kPa~l06kPa
Display:1.77"262K display
FHR Performance
Resolution: 1BPM
Accuracy: ±2BPM
Auto shutdown: After 1 minute no signal, power off automatically.
Battery Type:CONTEC10C:Three1.5V batteries (AA LR6)e and Structure
CONTEC10CL:Built-in rechargeable lithium battery, 3.7V 1600mAh
Standby time: No less than 8 hours.
Ultrasound coupling agent requirement:acousticimpedance:(1.5×106~1.7×106)Pa·s/m; acoustic attenuation≤0.05dB/(cm·MHz)
Ultrasound Probe:
Ultrasonic Output Power: P<20mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: ≤208 mm2
Peak-negativeacoustic pressure:P_<1MPa
Output Beam Intensity:Iob<20mW/cm2
Spatial-peak Temporal-average Derived Intensity:Ispta<100 mW/cm2
Note:In all working application modes, mechanical index: MI<1, thermal index: TI<1.
