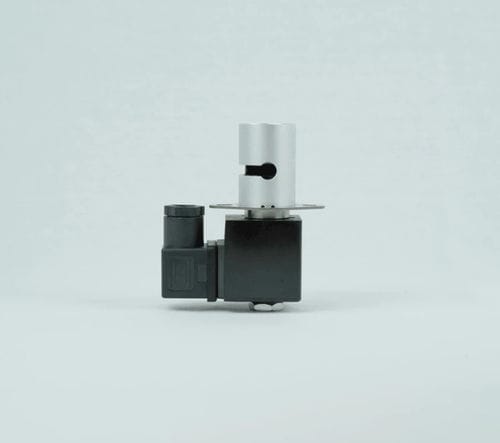

Medical valve 1269

solenoidblack

1269 series solenoid valve is a single-channel pinch valve designed according to customer needs. The solenoid valve has a large pipe diameter and a service life of more than 2 million times. It is a high-performance, low-cost pinch valve. The solenoid valve pipeline is simple and easy to clean, which is suitable for applications where the pipeline passes the detection sample contains impurities or particles. Feature Keyto pinch valve has three series. The mainly different is the port size. The port size means the pipe diameter you want to used. In addition to port size, we have many functions to choose from. like single port or dual port，and different installations and different voltage to meet your unique needs. Specifications Orifice Diameter 6mm Silicon Tube Specification 6mm×9mm(Imported silicone tube) Recommended Silicon Tube Hardness Shore hardness A:(60) Pressure 0~80KPa Power Consumption 12W Life time 2 million times Continuous power life one week Standard connection mPm connection Silicon tube specification 6mm X 9mm, shore hardness: 60. Flow rate 6mm X 9mm silicon tube, CV≥0.05, flow rate≥8.5mL/s (differential pressure 50KPa, 25℃, pure water). Silicon tube depends Wetted material depends on the silicon tube. Performance characteristics Long lifetime, high performance.
