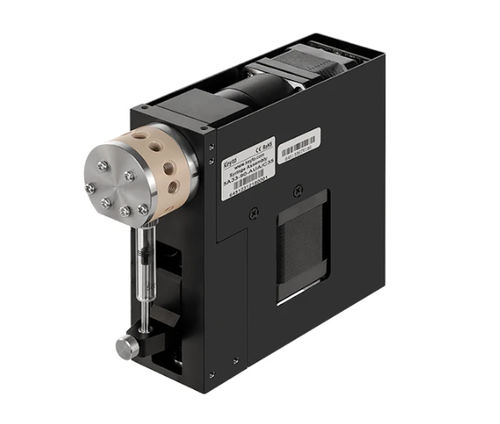

Biomedical research syringe pump SSP
laboratory1-channelprogrammable

biomedical research syringe pump
biomedical research syringe pump
biomedical research syringe pump
biomedical research syringe pump
biomedical research syringe pump
biomedical research syringe pump
biomedical research syringe pump
Add to favorites
Compare this product


Characteristics

Applications
for biomedical research, laboratory
Number of channels
1-channel
Other characteristics
programmable
Syringe volume

Min.: 0.01 ml
(0.000338 US fl oz)

Max.: 5 ml
(0.16907 US fl oz)

Width

44.5 mm
(1.75 in)

Height

127 mm
(5 in)

Description

The SSP Series is a compact, highly integrated, and flexible precision dispensing system, ideal for low flow rates and minimal pulsation. Specifications Stroke Length 30mm Stroke Speed 1.2s-100mins/stroke Step Resolution - Standard mode 3,000 steps, Hi-Res mode 24,000 steps Accuracy (full stroke) ≤ 1% (at 25°C, with 1ml syringe and above using deionized water) Precision (full stroke) ≤ 0.05% CV (at 25°C, with 1ml syringe and above using deionized water) Fluid Contact Materials Syringe: Borosilicate glass, PTFE/UHMWPE (seal) Rotary Valve (Plastic version)Stator - PCTFE/PEEK, Rotor - PTFE/UHMWPE Rotary Valve (Ceramic version)Stator-Ceramic,Rotor-Ceramic Solenoid Valve:PEI+FKM+PEEK Rotary Valve Options - Non-distribution:3-port, 4-port, 4-port dual-loop Distribution: 3-port, 4-port, 6-port, 9-port, 12-port Solenoid Valve Options 2-way Non-distribution, 3-way Distribution Valve drive ≤ 250 ms between neighboring ports Fittings 1/4-28 UNF Interface Type RS232, RS485, or CAN Communication Rates RS232/RS485 9600 or 38400 baud CAN-100Kb, 125Kb, 250Kb, 500Kb, 1Mb Format Date Bits 8, Parity - None, Stop Bit - 1 Half Duplex, Data Terminal and OEM protocols Addressing Maximum of 15 pumps can be addressed individually Power Requirement Supply voltage: 24 VDC±10%, Peak current: 2.0 A Operating Temperature and Humidity 15° - 40°C (59° - 104°F ) and 20-80% RH at 40°C (104°F) Non-Condensing High Accuracy and Precision Ensures accurate fluid delivery with full stroke accuracy ≤1% and CV value ≤0.05%. Integrated Functions Options to integrate glass syringes, rotary valves, and solenoid valves for versatile applications.
