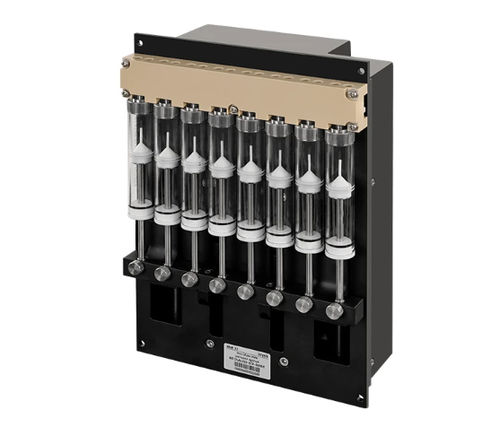

The MSP Series is designed for multi-probe liquid handling, operating 4 or 8 independent flow paths as adjacent pairs. Efficient and precise control is provided over multiple liquid handling tasks.
Specifications
Stroke Speed 1.2s-100mins/stroke
Step Resolution Standard mode 6,000 steps, Hi-Res mode 48,000 steps
Accuracy (full stroke) ≤ 1% (at 25°C, with 1ml syringe and above using deionized water)
Precision (full stroke) ≤ 0.1% CV at 25-100ul
≤ 0.05% CV at 250ul-5ml (at 25°C, with 1ml syringe and above using deionized water)
Fluid Contact Materials Syringe: Borosilicate glass, PTFE/UHMWPE (seal)
Rotary Valve (Plastic version) Stator - PCTFE/PEEK, Rotor - PTFE/UHMWPE
Rotary Valve (Ceramic version) Stator-Ceramic,Rotor-Ceramic
Solenoid Valve: PEI+FKM+PEEK
Rotary Valve Options 3-port Non-distribution, 3-port Distribution
Solenoid Valve Options 2-way Non-distribution, 3-way Distribution
Valve drive ≤ 250 ms between neighboring ports
Fittings 1/4-28 UNF
Interface Type RS232, RS485, or CAN
Communication Rates - RS232/RS485 9600 or 38400 baud
CAN-100Kb, 125Kb, 250Kb, 500Kb, 1Mb
Format Date Bits - 8, Parity - None, Stop Bit - 1
Half Duplex, Data Terminal and OEM protocols
Addressing Maximum of 15 pumps can be addressed individually
Power Requirement Supply voltage: 24 VDC±10%, Peak current: 2.0 A
Operating Temperature and Humidity 15° - 40°C (59° - 104°F ) and 20-80% RH at 40°C (104°F) Non-Condensing
High Accuracy and Precision
Ensures accurate fluid delivery with full stroke accuracy ≤1% and CV value ≤0.05%.
Integrated Functions
Options to integrate glass syringes, rotary valves, and solenoid valves for versatile applications.
