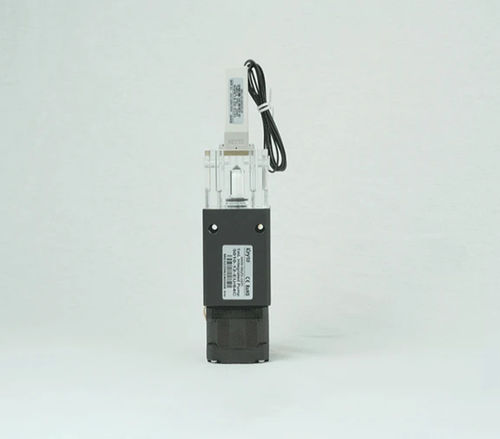

Laboratory pump

pistonfor liquids

Valve&pump integrated is a product of combining precision piston pump and solenoid valve that is independently developed by Keyto, its mainly function is to achieve accurate quantitative aspiration and dispense of liquid. The piston pump has high accuracy and CV value, and its service life can reach more than 5 million times. It is a high performance, low cost, maintenance-free precision piston pump. Valve&pump integrated has been widely used in medical devices and laboratory analytical instruments. Highly Customized: Valve Integrated Syringe Pumps can be customized with different applications, like different specification of flow control maps, different arrangement methods and mounting ports according to customers' requirement. Specifications Total travel distance(mm) 12.7 Lead(mm) 1.27 Travel distance per step(mm/step) 0.00635 Product life cycle note1 5 million Coefficient of variation(CV)note2 1.5% Accuracynote3 2% Port connection 1/4-28 UNF or M6 Mediumnote4 Water, weak acid and base liquid, etc. Note: Note 1: When the working medium is gas, pls contact us to determine the suitable P/N; Note 2: The nominal CV is measured at 2% of the total displacement; Note 3: The nominal accuracy is measured at 2% of the total displacement; Note 4: If other types of reagents are used, test verification is required. Please contact our technical staff. Operating Voltage (V) 12V/24V±10% DC Orifice(mm) 1.5 CV 0.03 Response time(ms) <30 Life cycle 2 million Dead volume 0 Por connection 1/4-28 UNF or M6 Medium Water, weak acid and base liquid, etc.
