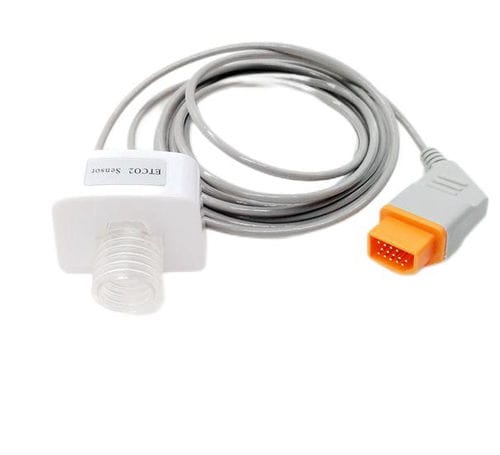

EtCO2 sensor ETCO-Z-NK1

CO2medical

Compatible With Nihon Kohden MainStream ETCO2 Sensor For TEC 8352K Connector:14pin Technical Specification Sample Flow Rate Range:50-150 ml/min; Accuracy:±20% ; Default: 75 ml/min Principle of Operation Non-dispersive infrared, dual wavelength, no moving parts Initialization Time Capnogram displayed in less than 4 seconds, at an ambient temperature of 25℃, full specifications within 2 mintues CO2 measurement Range 0-114 mmHg ; 0-15% ; 0-15.2 kPa CO2 Response Time Includes Transport time and rise time.Less than 2 seconds, at 150 ml/min sampling flow Less than 3 seconds, at 100 ml/min sampling flow Less than 4 seconds, at 50 ml/min sampling flow CO2 Resolution 0.2 mmHg @ 0-59 mmHg ; 0.5mmHg @60-114 mmHg CO2 Accuracy 0-40 mmHg ± 2 mmHg41-70 mmHg ± 5% of reading 71-100 mmHg ± 8% of reading 101-114 mmHg ±10% of reading Above 80 reaths per mintue ±12% of reading * Note:Gas temperature at 25℃ CO2 Stability Short Term Drift : Drift over three hours shall not exceed 1 mmHg maximumLong term Drift : Accuracy specification will be maintained over a six hour period CO2 Noise RMS noise of the sensor shall be less than or equal to 0.5 mmHg at 5% CO2 Sampling Rate 100Hz Respiration Rate Range 2 to 150 breaths per minute Respiration Rate Accuracy ± 1 breath Calibration No Routine user calibration required EtCO2 Calcuation Method: peak of the expired CO2 waveform
