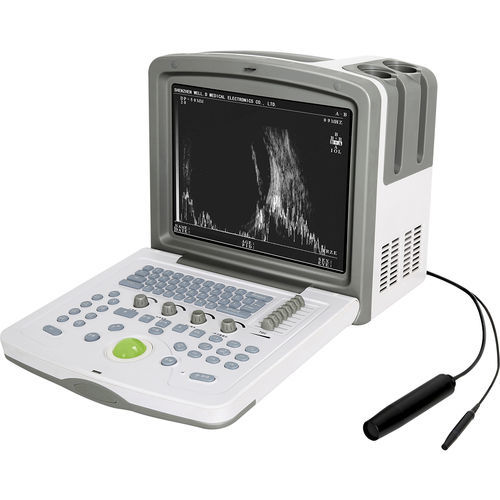

Portable ultrasound system WED-5100

for ophthalmic ultrasound imagingB/W12-inch

Ophthalmology A/B Ultrasonic Diagnostic System For human ophthalmic ultrasound examination Digital imaging technology 12.1" high resolution color LCD display, image being delicate and clear Powerful computer management system Built-in high capacity hard disc, supporting U disc storage, laser printers Supporting DICOM interface Powerful, user-friendly design, easy to operate, compact appearance Built-in ultrasound image and medical record management system Double-image contrast observation Offering five authoritative formula, of which any two groups can be displayed by contrast SRK-T, SRK- Ⅱ, BINKHOST- Ⅱ, HOLLADAY, HOFFER-Q, any two formulas able to calculate by contrast and display simultaneously Performance: Ultrasound operating frequency: 10MHz (8.0 ~ 11.0MHz adjustable) Scan mode: motor driven sector scanning Gain adjustment: 0 ~ 50dB TGC: eight-section adjustment Scanning angle: 53° Display mode: B, B + B, B + A, A Any area measurement B – ultrasound Ultrasound operating frequency: 10MHz (8.0 ~ 11.0MHz adjustable) Scan mode: motor driven sector scanning Gain adjustment: 0 ~ 50dB TGC: eight-section adjustment Display mode: B, B + B, B + A, A Display depth: 20mm ~ 65mm (20mm, 25mm, 30mm, ......, 55mm, 60mm, 65mm) ten-level adjustable Scanning angle: 53 ° Resolution: Axial ≤ 0.2mm, Lateral ≤ 0.4mm Geometric position accuracy: Longitudinal ≤ 5%, lateral ≤ 10% Grayscale: 256 DSC capacity: 640 * 512 * 8 bit Image pre-processing: frame averaging, line averaging Image post-treatment: four groups of post-treatment curves (linear, logarithmic, exponential, S-type) Dynamic playback: 25.6s/256, cyclic or single playback
