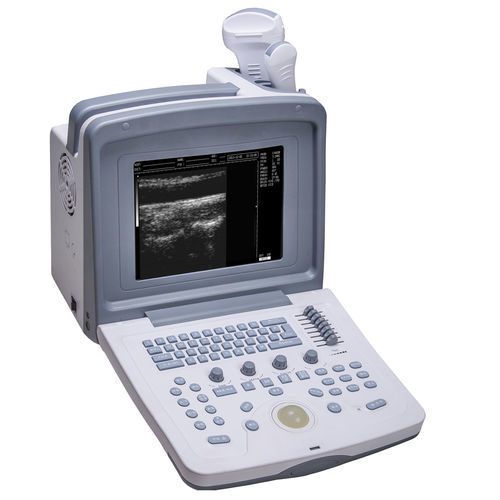

Portable veterinary ultrasound system WED-9618V

multipurpose

Vet B-Ultrasound Diagnostic System For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals Scanning Model Electronic Linear Array, electronic convex array Cine-loop ≥400 frames Image Storage ≥32 frames Display Depth ≥250mm Scanning Angle Visible and adjustable Display Mode B, B+B, B+M, B+M/M, M, and 4B Operation Interface Chinese/English switchable TGC Adjustment Near Field, Far Field, Total Gain Independent Adjustment Focus Control Focus Number, Focus Distance, Focus Position Adjustment Image Processing - Image Black/White, Gamma Correction, Edge Enhancement and Histogram External Ports - External Ports: Video port, RS-232 port and USB port Measurement - Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, sheep, pigs, cats and dogs etc.) Real-time Depth 16 levels are adjustable Zoom ≥2 times WED-9618 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization(DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.
