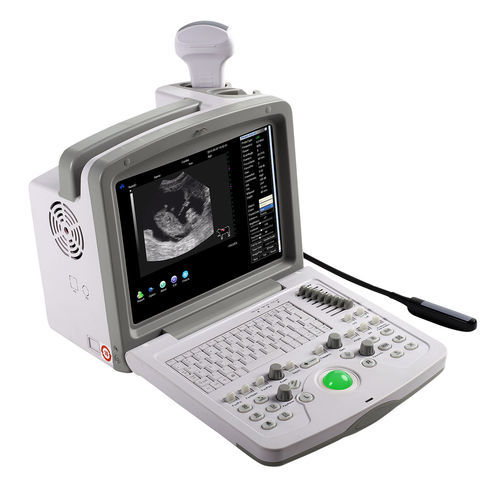

Portable veterinary ultrasound system WED-160V

multipurposefor equinesfor swine

Vet B-Ultrasound Diagnostic System For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals Platform PC Control Platform based on WINDOWS system Scanning Model Electronic Linear Array, Electronic Micro-convex Array, Electronic Convex Array Image Storage BMP, JPG, DCM, and tif are available; built-in hard disk≥160G Display Depth 250mm Image Processing Edge enhancement, tissue harmonic, scanning line density, Gamma Correction, Histogram Zoom ≥5 times (real-time or freeze) Pseudo-color ≥ 10 types Image Enhancement ≥7 types Focus Adjustment - Focus Number ≥4; Focus span and focus position are adjustable Patient Records Management System - Add, Search, Revise and Report functions are available External Ports Video port, RS-232 Port, USB Port, DICOM3.0 Port, PS/2 Port and XGA Port Adopting Multiple technologies such as digital scan converter (DSC), digital beam forming (DBF) , real-time dynamic aperture (RDA), dynamic receive apodization (DRA), dynamic receive focusing (DRF), dynamic frequency scan (DFS) and so on • Image optimization and enhancement, smoothing, frame correlation processing, pseudo-color ,Gamma Correction, Real-time Zoom/Zoom to area • Automatically report generating accords to image collection, diagnostic description and measurement projects. • Diversified and Complete image-text medical records management function; Typical & upgradable medical records import/export function; these two functions can satisfy needs of extended clinic applications.
