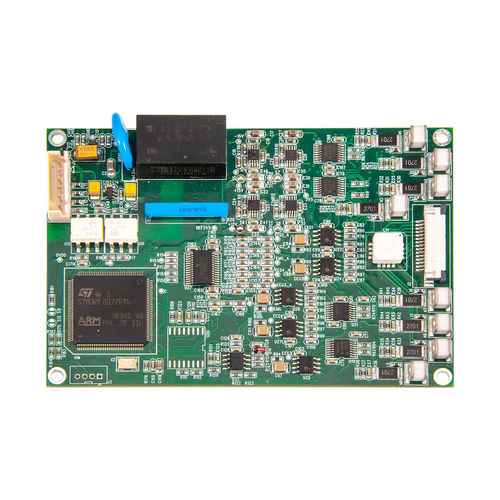

Data acquisition module M701
telemonitoringEEGEMG

data acquisition module
data acquisition module
data acquisition module
data acquisition module
Add to favorites
Compare this product


Characteristics

Function
data acquisition
Application
telemonitoring
Data
EMG, EEG

Description

EEG Module EEG is the most important to learn brain function of patient.Witleaf's EEG OEM solution can provide: > 2 or 4 Channel EEG waveform; > TP,EMG,SQI,EEG,SEF95,MF,BSI; > Delta,Theta,Alpha,Bata Frequency band ratio; > Integrated tools and technical support; > Certificated support and standard test report. Multi-functional parameter calculation EEG monitoring technology supports the calculation of parameters including the power ratio of α,β,γ and δ waves from the EEG power spectrum, as well as frequency domain parameters such as β-ratio, SEF (limbic spectrum), EMG power, and TP total power spectrum. The inhibition level index BSI was calculated by evaluating the EEG signal in the time domain. Complete sensor support EEG measurement technology supports a variety of sensor matching system measurements. with forehead electrodes, head-mounted electrodes, cap electrodes, to meet different applications. 4 Channels EEG/TP/EMG/MF/BSI/SQI/b_Noise/aEEG 2 Channels EEG/TP/EMG/MF/BSI/SQI/b_Noise/aEEG Applicability people: Adult/Pediatric/Neonate Recommended applications: EEG Monitoring
