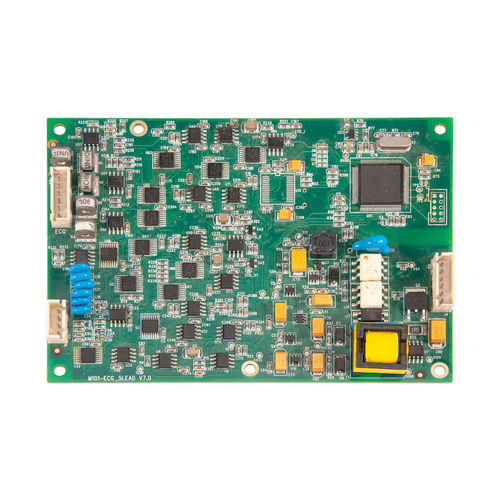

3/5 Leads ECG Module
M101
The M101 monitoring ECG measurement module can measure ECG, respiration, body temperature,Used in patient monitoring
Dimension
Dimension:125mm x 90mm x 15mm
Module thickness is only 15mm,exquisite and compact
Powerful monitoring function
With 3/5 lead ECG, 1 breathing, 2 body temperature monitoring functions
Measurement results include heart rate, body temperature, respiration
and ST segment offset values of I, II, and V1 channels
Four measurement modes
Diagnosis mode: filter range is 0.05hz~130hz
Monitoring mode: filter range is 0.5hz~40hz
HARDEST mode: the filtering range is 5hz~20hz
Operation mode: filter range is 1hz~25hz
Arrhythmia analysis
26 arrhythmia analysis functions,
verified by MIT and AHA databases,
and passed EC57 standardized test
