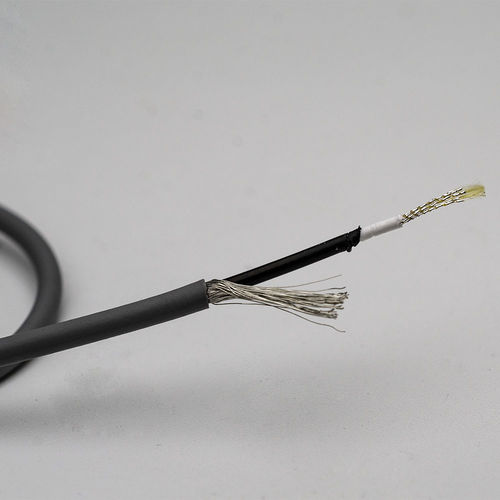

ECG cable EC201S-007

This Single lead ECG cable for Ecg Snap Cable adopt Silvered Tinsel wire as conductor Tinsel is widely used when the application enviroment need the cable to be flexible.Tinsel，s Resistance is bigger than copper wire .there are two types of Tinsel used a lot:one is Silver-plated tinsel;another is Tinned tinsel. Considering the Tinsel Resistance ,Small OD and Flexibility.Silver plated Tinsel is used more than tinned tinsel. Condoctor Material 7/0.23 Silver-plated Tinsel+200DKEVLAR AWG 24 Construction 7/0.23TC+200D (Pitch)mm 8±2 Pitch Direction Left Stranded O.D 0.65 Insulation Material PP O.D ( mm) 1.05-/0.03 AVG. Thickness ( mm) 0.20 Min. Thickness ( mm) 0.16 Color White Conductive layer Material Conductive PVC O.D( mm) 1.3±0.03 AVG. Thickness ( mm) 0.12 Min. Thickness ( mm) 0.10 Color - Black Outer shield Material TINNED COPPER Type Spiral 52±3/0.08 Coverage 90% Jacket Material TPU 5040 O.D ( mm) 2.2±0.10 AVG. Thickness ( mm) 0.37 Min. Thickness ( mm) 0.29 Color Grey Print N/A
