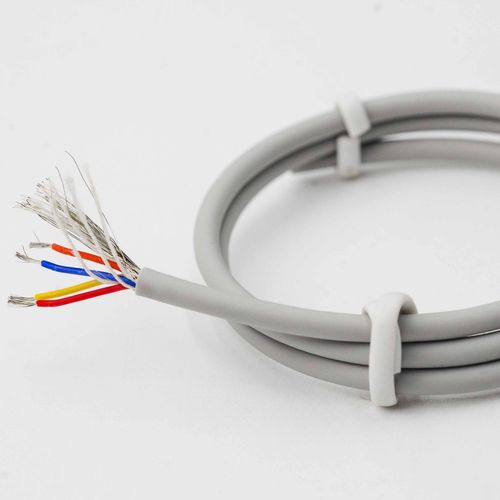

ECG cable EC204S-002
Add to favorites
Compare this product
Description
OD:φ2.5MM 4 lead ECG cable:25/0.05TC*4C+spiral Shield Jacket TPU（5040 or 4766）. It is an very flex Low Noise Coaxial cable available.
Conductor
Material - TINNED COPPER
Construction - 25/0.05TC
Pitch mm - 5±2
Stranded O.D - About：0.30
Insulation
Material - PE
NO of wire - 4C
O.D mm - 0.60±0.05
AVG. Thickness mm - 0.15
Min. Thickness mm - 0.12
Color - 1.White 2.Red 3.Yellow 4.Green
Cabling
(Pitch) mm - 20±5
Material - Cotton wire
Outer shield
Material - 52±3/0.08TC
Coverage - Spiral, 90% Min.
Jacket
Material - TPU(With UL94-V0）
(O.D) mm - 2.5±0.10
AVG. Thickness) mm - 0.40
(Min. Thickness) mm - 0.32
Color - Gray
