ECG cable EC205S-001
Add to favorites
Compare this product
Description

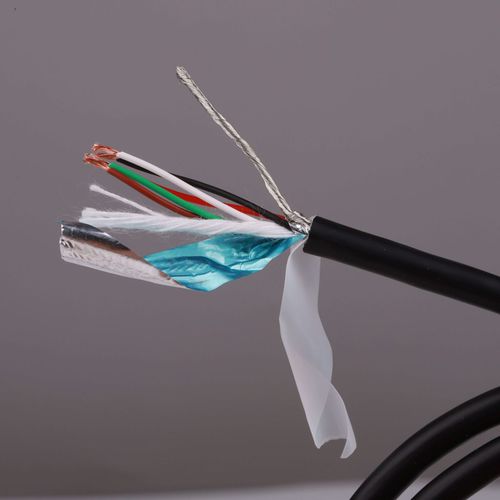

This is a soft economic 5 lead ecg cable.PVC jacket,Bared copper conductor.we also have lots of TPU medical cable with Silver plated Copper ,Tinned Copper,Tinsel,Alloy optional
Conductor
Material - Bared copper+Nylon
Specification - 19/0.10BC+250D Nylon
Insulation
Material - HDPE
Nom.Thickness - 0.24
Nom.O.D. - ø1.00士0.05
Colour - White/Green/Black/Red/Brown
Aluminum Leaf - Specification - 10士2mm
Wrap
Material - PTFE Tape
Filler
Material - Contton Thread
Shield
Material - Tinned copper
Specification - 75士5/0.10TC
Coverage - >90%
Jacket
Material - 80P-PVC
Nom.Thickness - 0.96
Nom.O.D. - ø5.2士0.15
Colour - Black
