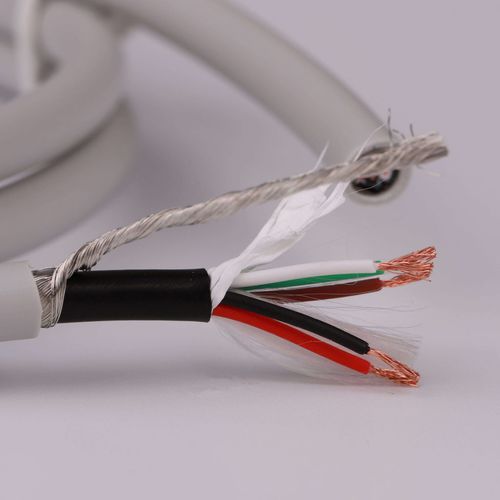

ECG cable EC205S-002
Add to favorites
Compare this product
Description
Conductor
Material - Bared copper/TC optional
Specification - 19/0.10BC士0.008
Insulation
Material - HDPE
Nom.Thickness - 0.34
Nom.O.D. - ø1.2士0.05
Colour - White/Green/Black/Red/Brown
Conducting Layer
Material - Semiconductive PVC
Nom.Thickness - 0.25
Specification - ø2.0士0.10
Colour - Black
Wrap
Material - PTFE Tape
Filler
Material - Nylon
Shield
Material - Tinned copper
Specification - 106士5/0.10TC
Coverage - >90%
Jacket
Material - TPU (5040)
Nom.Thickness - 0.5
Nom.O.D. - ø5.55士0.15
Colour - Gray
