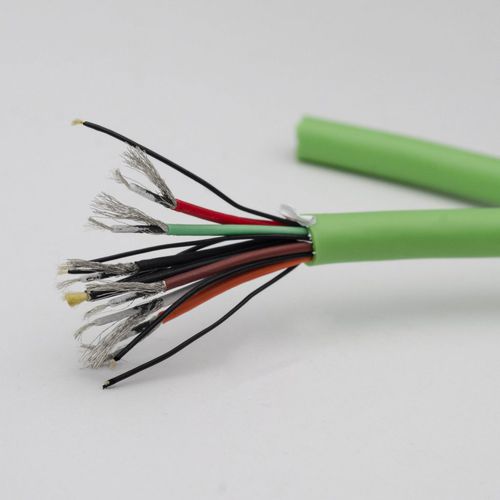

ECG cable EC206S-004

Multi Core Coaxial Low Noise Cable With Huntsman TPU Jacket And Graphene Coating is different from traditonal coaxial Low Noise cables whose conducting Layer are Semi-conductive PVC,EC206S-004 adopt Graphene coating as Low Noise Layer ,realize Lower and more stable noise purpose.With Graphene coating,more cores in limited Jacket become realizable. Separate shielding for each core conquers the problem for Multicore cables that caused by the uncompacted contact between the conducting layer of each core and overall shielding. Graphene coating Low Noise layer shoot the “instability” of tradtional Low noise layer which was caused by the instability of semi-conducting pvc. For High end application. Conductor Material TINNED COPPER WIRE+ARAMID FIBER YARN Specification - 11/0.05±0.003 Insulation Material HDPE Nom.Thickness - 0.2 Nom.O.D. ø0.60士0.05 Colour White Inner Jacket Material PE Nom.Thickness 0.1 Nom.O.D. ø1.05士0.15 Colour - White/Black/Red/Green/Brown/Orange Low Noise Layer Material Graphene Separator - Material PTFE Tape Filler - Material - 1000D*3 KEVLAR+TPE Shield Material - Tinned copper Specification 50士5/0.05TC Coverage - >90% Jacket Material TPU (5040) Nom.Thickness - 0.4 Nom.O.D. ø4.40士0.20 Colour - Green
