ECG cable EC210S-003

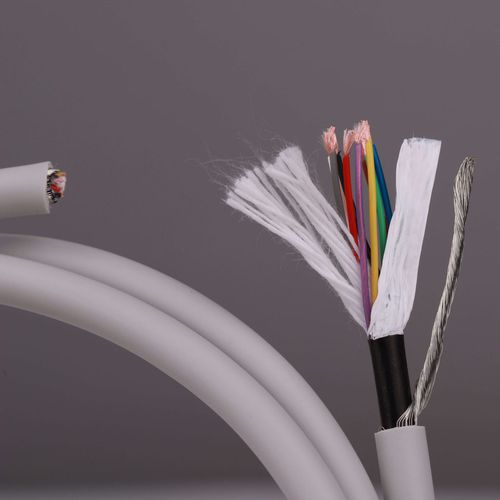

OD 5.4mm Shielded raw patient cable- 10 lead ECG cable.AHA/AAMI color coding.TPU5040 Gray jacket.Regular stock available.Custom manufacture 7-10 Day lead time Conductor Material Bared copper+KEVLAR Specification 11/0.08BC+200D KEVLAR Insulation Material HDPE Nom.Thickness 0.22 Nom.O.D. ø0.75士0.05 Colour - White/Green/Black/Red/Brown/Blue/Purple/Gray/Orange/Yellow Conducting Layer Material Semiconductive PVC Nom.Thickness 0.21 Specification ø3.6士0.08 Colour Black Wrap Material PTFE Tape Filler Material Contton Thread Shield Material Tinned copper Specification 85士5/0.10TC Coverage >90% Jacket Material TPU (5040) Nom.Thickness 0.8 Nom.O.D. ø5.4士0.15 Colour Gray(7KL7)
