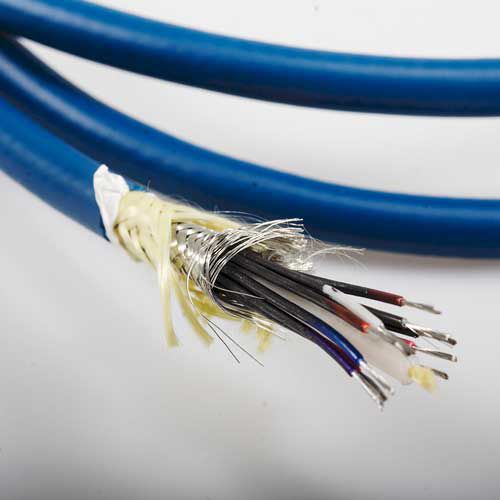

ECG cable EC211B

EC211B is a 11 leads low noise cable for 13 leads ECG monitoring purpose.There are also 13 conductor cable for 13 lead ecg monitoring,which is parallel in shape Huntsman TPU Jacket And Graphene Coating is different from traditonal coaxial Low Noise cables whose conducting Layer are Semi-conductive PVC,EC211B adopts Graphene coating as Low Noise Layer ,realize Lower and more stable noise purpose.With Graphene coating,more cores in limited Jacket become realizable. An Extra Kevlar Braiding NOT only enhace the contacting between the cores and the shielding,but also enhance the strength of the cable.However,it makes the cable feels a little rigid compared with traditional TPU Medical cables Graphene coating Low Noise layer shoot the “instability” of tradtional Low noise layer which was caused by the instability of semi-conducting pvc. Condoctor Material TINNED COPPER ALLOY AWG 28 Construction 19/0.08TSN Pitch mm 7±2 Pitch Direction Right Stranded O.D 0.4 Insulation Material PP NO of wire 11C O.D mm 0.98±0.05 Thickness mm 0.29 Min. Thickness mm 0.24 Color Yellow/Brown/Grey/Black/Pink/ Green/Red/Purple/Blue/Orange/White Coating Material LOW NOISE LAYER O.D mm 1.00±0.05 Cabling Pitch mm 50±10 Material KEVLAR Outer shield 1 Material 0.10TSN Type BRAID+KEVLAR Coverage 90%MIN Outer shield 2 Material Kevlar Type Coverage 50%MIN Wrap Material PTFE coverage 25% MIN Jacket Material TPU 5040 O.D mm 6.5±0.20 AVG. Thickness mm 0.65 Min. Thickness mm 0.55 Color RAL7035 and gray for opiton,support OEM Mark N/A
