MRI MRI cable

24-wire

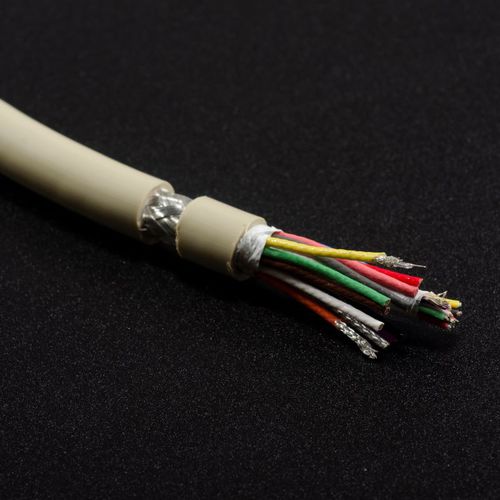

The 24 Wire MRI Cable With 12 Coax 32AWG And 12x 26AWG Signal Wire;It is Imaging Cable for MRI Machines.We also provide other spec MRI cable with different coax numbers and signal wire numbers,such as 12 coax +20 signal wire,16 coax+16 DC wires…..It maybe used in 24-channel head coil for MR imaging And we are experienced in medical imaging signal cables ,especially custom MRI cable for MRI rf coils Technical Data: • Operating voltage：30V • Test voltage：AC 1.0kV/1min • Temperature range：-40°C ～+ 80°C • Insulation resistance B(20°C)：≥ 100MOhm x km • Characteristic impedance：50±3Ω • Delay：4.9ns/m • VSWR：≤1.3（12~300MHz） • Attenuation typ.（dB/100m）：12MHz≤21.7，63MHz≤49.5， 123MHz≤69.1，135MHz≤72.5，300MHz≤108.8 ，350MHz≤155.2， 400MHz≤175.1，450MHz≤190.2，500MHz≤210.1
