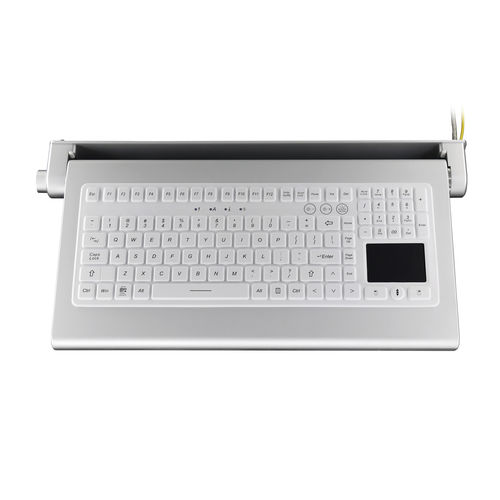

Medical keyboard with numeric keypad ATM-ORK01

with touchpadwith international layoutsilicone

ATM-ORK01 is a wall mounted input device solution specially designed for digital operating room. It is not only fine and beautiful, but also has a high quality standard. Perfect match with operating room imaging equipment and system. Main Features 2. Cleaning lock function for easier cleaning. 3. Easy to clean with hospital grade antibacterial wipes and sprays. 4. With adjustable backlight. 5. Can be operated with gloves. 6. Folded panel can be locked. 7. Integrated capacitive touchpad (sensitivity is adjustable) 8. Integrated USB HUB with 2 x USB 2.0 extension ports. 9. Hidden wires design, messy wires can't be seen outside. MECHANICAL DATA 1. Key: 110 keys 2. Key top style: Protuberant rectangular keys with tactile feeling. 3. Switch life: more than 5 million of operations. 4. Cable Length: Available on request 5. G. W.: About 3.52 kg 6. 100% silicone keyboard, latex free. Aluminum alloy housing, surface sandblasting + anodizing 7. Language: Available On Request. 8. Rotation shaft style: Flange shaft ELECTRICAL DATA 1. Supply Voltage: +5V DC +/-5% 2. Current Rating: USB: 220mA@5V (from CPU port) 3. Radiated emission: EN 55011 & EN 55032 4. Electrostatic discharge: EN 61000-4-2 (± 2/4/8/15 kV) 5. Radiated high frequency field: EN 61000-4-3 6. Electrical fast transient/burst: EN 61000-4-4 7. Conducted disturbances, induced by radio-frequency fields: EN 61000-4-6 8. Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB. 10. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7, Linux, Unix, Mac OSX ENVIRONMENTAL ADAPTABILITY 1. Operating temperature: -20℃ to +60℃ 2. Storage temperature: : -25℃ to +65℃ 3. Humidity: 100%
