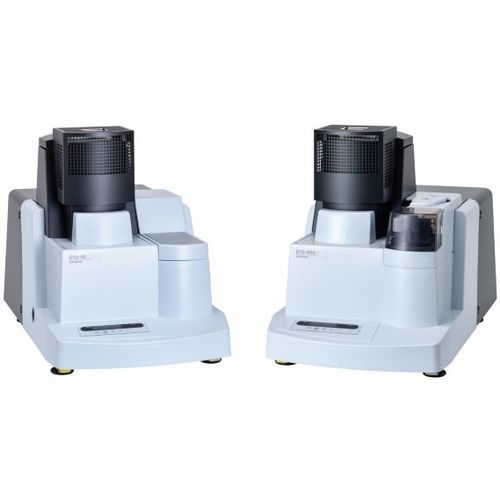

This instrument varies the sample temperature in accordance with a program and simultaneously measures the change in mass of the sample (TG) and the temperature difference between the sample and a standard substance (DTA). An analytical balance mechanism (Roberval mechanism) offers high reproducibility and allows worry-free operation even for measuring sample weights. Two models are available for different maximum measurement temperature requirements-the DTG-60 (max. 1,100 °C) and the DTG-60H (max. 1,500 °C). Corresponding DTG-60A and DTG-60AH models with a built-in autosampler are also available to automatically measure up to 24 samples.
Features
High-Sensitivity and High-Accuracy Measurement
High-accuracy Roberval mechanism top-loading balance system
The Roberval mechanism has been adopted, so that the sensitivity does not change due to changes in the center of gravity of the sample caused by melting, etc.
The fulcrum is a thin alloy band with a very small temperature coefficient, configured into an X-shape. This fulcrum is lightweight and has very little friction and resistance, enabling the construction of a high-sensitivity balance, which is also very resistant to vibrations.
Supports Various Types of Measurement
Flow channels for reaction gas provided
With TG/DTA measurement, qualitative and quantitative analysis, the study of reaction mechanisms, and evaluation of thermal resistance can be carried out by observation of various types of reactions and interactions between the sample and special atmosphere gases. With the DTG-60 Series, various applications are supported by configuring individual flow channels.
