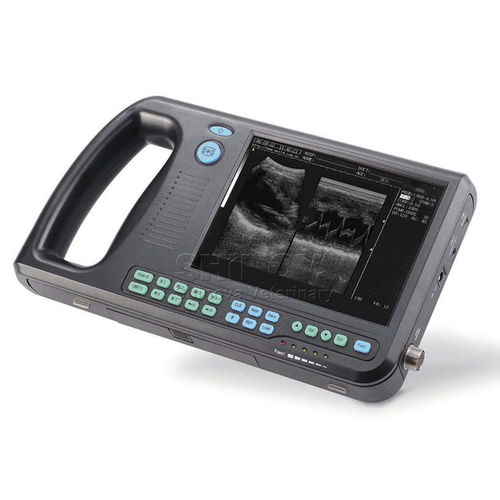

Hand-held veterinary ultrasound system SonoScan A1V

multipurposeB/W

Palmtop SonoScan A1V is the latest model by us,weighting only 1.3KG,is distinguishable by its bright and clear image quality. The interchangeable probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for family doctors,veterinary scanning.The complete software and the high product versatility are available in it. Scanning Method: Convex, Micro-convex, Linear, rectal Display Mode: B, B+B, B+M, M Gray Scale: 256 levels Monitor: 6.4 inch TFT color LCD Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession 128 frames for cine-memory 32 image permanent storage Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times 4 focusing combination selectable 4 different coded-color available 15 difference kinds of body marks with difference calipers. Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation. Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info. PAL-D output Mouse interface Main unit + 6.5MHz rectal linear probe 1) R40/3.5MHz convex probe 2) R20/5.0MHz micro-convex probe 3) L40/7.5MHz linear probe
