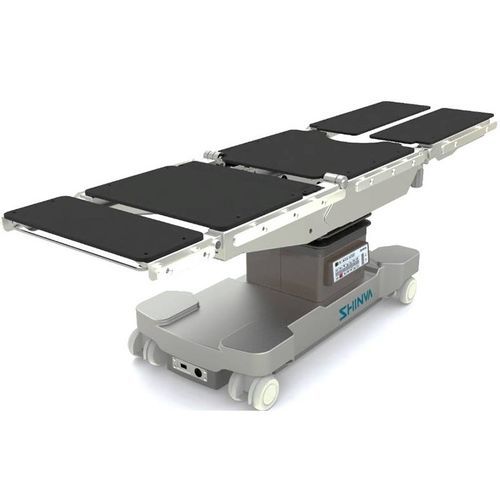

Universal operating table H7000electro-hydraulicTrendelenburgreverse Trendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electro-hydraulic
- Features
- adjustable height, mobile, Trendelenburg, reverse Trendelenburg
- Components
- with legrest
- Number of sections
- 5-section
- Power source
- 220V / 50Hz
- Length
2,030 mm
(79.9 in)- Width
540 mm
(21.3 in)- Height
Max.: 1,000 mm
(39 in)Min.: 600 mm
(24 in)- Maximum load
250 kg
(551.16 lb)
Description
With classic five parts design, STable-H7000 can answer most surgeries needs. It is high cost-effective ratio product in operation table market.
■ Germany gas spring (STABILUS) for leg board movement
■ Dual-column control system
■ Unique hydraulic brake caster system (the first in China)
■ One-key to V and anti-V position; one-key to reset
■ High quality hydraulic system
Technical Specifications
Trendelenburg/Reverse 250/25°
Lateral Tilt(left/right) 20/20°
Back Plate up/down 80°/40°
Head Board up/down 45/90°
Leg Board down/extension(Detachable) 20/90/90°
Kidney Bridge 120mm
Longitudinal Shift 350mm
