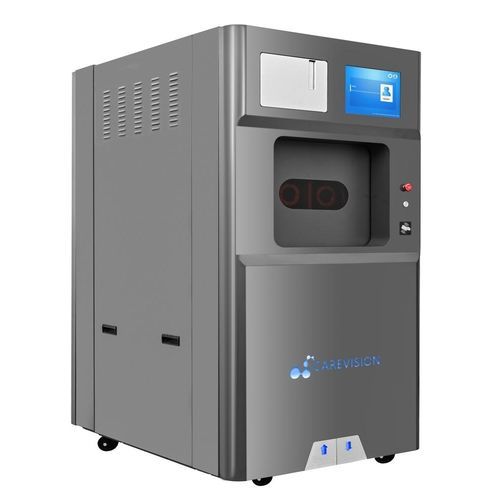

Medical sterilizer CVM-120S/D

dentalCSSDoperating room

CVM-120S/D Door type:Automatic sliding single/double door; safty protection Installation method:Floor installation with movable caster Chamber type:Single / through out chamber Total chamber volume:150L Usable chamber volume:120L Chamber material:Aircraft level aluminium Chamber shape:Rectangle Power supply:3 Phases; 380V 50Hz Programs (4 kinds):Fast:35mins; Standard:45mins; Flexi Endo:48mins; Vacuum Drying: 20mins Software function:Humility detection;H2O2 concentration detection (optional); Power display of plasma stage; Pressure display; Time display; Temp display Input power:≤4200W;150L≤4800W Constent temp power:1200W Standby power:About 25W Noise:≤60dB Operation environment temp:5℃～40℃ Operation environment humidity:30%～95%（No frosting） Operation atmospheric:700hPa～1060hPa Dosage volume of H2O2(ml): Fast:4.5mL/cycle; Standard: 9mL/cycle; Flexi Endo: 9ml/cycle Cycle QNT/cassette: Fast：12 cycles; Standard:6 cycles; Flexi Endo: 6cycles Chamber working temp: 45℃～60℃ Maximum chamber vacuum degree: <80Pa Machine dimension（W*D*H）: "800mm*1100mm*1790mm(Single door); 820mm*1130mm*1790mm (double door);" Installation space（W*D*H: "1400mm*1500mm*2000mm(Single door); 1400mm*1600mm*2050mm (doubledoor);" Instrument shelf:Type: movable ;Qantity and load capcity:2 (4 available) shelves; total 30KG, 15kg/shelf N.W.: 460Kg; G.W.: 520Kg Panel material: Q235 carbon steel with plastic spraying painting Maintenance:6 months; Guarantee period:2 years Touch screen:12inch; TFT true color; touch screen Printer: Internal needle printer Data record and tracking:Check and print at any time ( IOT):port opening with HIS/CSSD/CME/CSD system, USB port, RFID of endocope sterilization tracking
