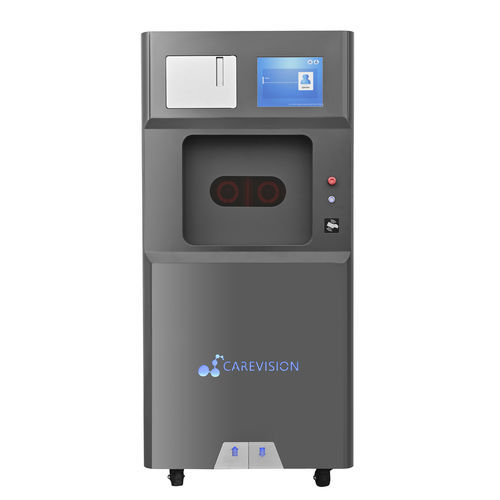

CVM-150S/D
Door type:Automatic sliding single/double door; safty protection
Installation method:Floor installation with movable caster
Chamber type:Single / through out chamber
Total chamber volume:186L
Usable chamber volume:154L
Chamber material:Aircraft level aluminium
Chamber shape:Rectangle
Power supply:3 Phases; 380V 50Hz
Programs (4 kinds): Fast: 35mins;Standard: 48mins;Flexi Endo: 52mins;Vacuum Drying: 20mins
Software function:
Humility detection;
H2O2 concentration detection (optional);
Power display of plasma stage;
Pressure display:Time display;
Temp display
Input power:≤4200W;150L≤4800W
Constent temp power:1200W
Standby power:About 25W
Noise:≤60dB
Operation environment temp:5℃~40℃
Operation environment humidity:30%~95%(No frosting)
Operation atmospheric:700hPa~1060hPa
Dosage volume of H2O2(ml):
Fast: 5mL/cycle; Standard:10mL/cycle;Flexi Endo: 10ml/cycle
Cycle QNT/cassette:Fast:12 cycles;
Standard:6 cycles;
Flexi Endo: 6cycles
Chamber working temp:45℃~60℃
Maximum chamber vacuum degree:<80Pa
Machine dimension(W*D*H):
820mm*1070mm*1790mm (single door);
820mm*1130mm*1790mm (double door);
Installation space(W*D*H):
1400mm*1500mm*2050mm (single door);
1400mm*1600mm*2050mm (doubledoor);
Instrument shelf:Type: movable ;Qantity and load capcity: 2 (4 available) shelves; total 30KG, 15kg/shelf
N.W. - 500kg
G.W. - 600kg
Panel material: Q235 carbon steel with plastic spraying painting
Maintenance: 6 months
Guarantee period: 2 years
Touch screen:12inch; TFT true color; touch screen
Printer: Internal needle printer
Data record and tracking:Check and print at any time
( IOT): port opening with HIS/CSSD/CME/CSD system, USB port, RFID of endocope sterilization tracking
