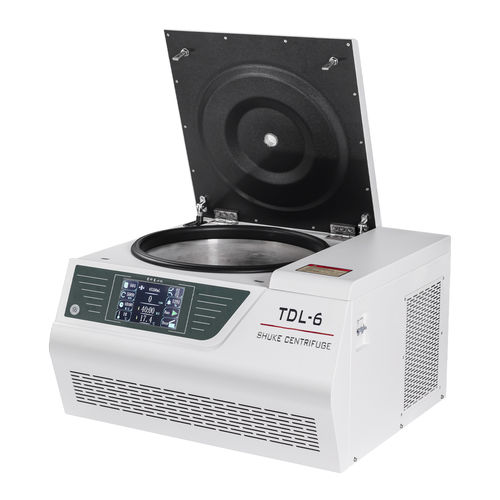

Laboratory centrifuge TDL-6
multipurposebloodbenchtop

Laboratory centrifuge - TDL-6 - Sichuan Shuke Instrument Co.,Ltd - multipurpose / blood / benchtop
Laboratory centrifuge - TDL-6 - Sichuan Shuke Instrument Co.,Ltd - multipurpose / blood / benchtop
Laboratory centrifuge - TDL-6 - Sichuan Shuke Instrument Co.,Ltd - multipurpose / blood / benchtop - image - 2
Laboratory centrifuge - TDL-6 - Sichuan Shuke Instrument Co.,Ltd - multipurpose / blood / benchtop - image - 3
Laboratory centrifuge - TDL-6 - Sichuan Shuke Instrument Co.,Ltd - multipurpose / blood / benchtop - image - 4
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Function
multipurpose
Sample type
blood
Configuration
benchtop
Rotor type
swing-out, fixed-angle
Temperature control
refrigerated
Performance
low-speed
Operation
automatic
Speed

6,000 rpm
(37,699.1 rad.min-1)

RCF max (g)

5,123 unit

Noise level

60 dB

Weight

80 kg
(176.4 lb)

Length

640 mm
(25.2 in)

Width

560 mm
(22 in)

Height

390 mm
(15.4 in)

Description

User-friendly functions >up to 1000 user-defined programs, with password protection >up to 1000 run histories >up to 40 rates acceleration and deceleration,speed downs curvely slowly from 500rpm to 0rpm to prevent samples shake >up to 5 stages multi-stage centrifugation mode available >up to 99h59m59s timer range, 1s increment >2 timekeeping modes: count up, count down >Curve display---Speed curve,RCF curve and Temperature curve are displayed together,clear to see their changing and relations. Refrigeration >Imported compressor unit >-20°C to +40°C ,1°C increment >±1℃ high temperature accuracy >CFC-free refrigerant >PID dynamic temperature control >Temperature sensor inside the chamber >Starts refrigeration when power on >Maintains refrigeration after spin >With ECO energy-saving module Ensure safety >Imbalance detection by three axis gyroscope >Motorized electronic door lock >Door cannot be opened when rotor is spinning >Gas hinge to prevent door falling >Port in the door for calibration and operation checking >Emergency door lock release >Password to lock the device >Various protections to ensure safe centrifugation Good components >Motor: Variable frequency motor. stable running,maintenance free,long life >Housing: Thick and strong steel >Chamber: Medical grade 316 stainless steel. anticorrosion and easy to clean >Rotor: Aluminum alloy fixed angle rotor; Stainless steel swing out rotor. >Rotors are autoclavable AVAILABLE ROTORS Swing out rotors for: 10ml,15ml,50ml,100ml,250ml,blood tube,96 well plate. Fixed angle rotors for: 15ml,50ml
