L790mm*W660mm*H990mm

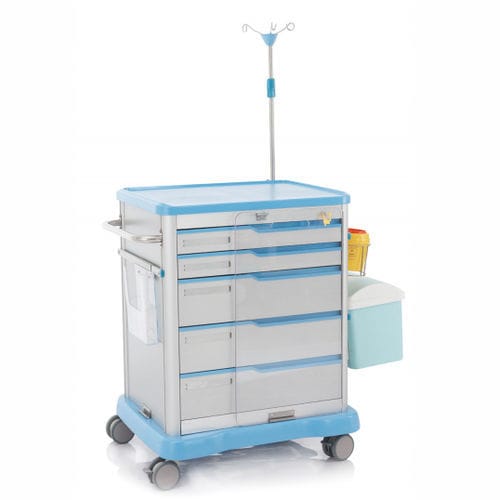

The whole vehicle configure five drawers with one disposable safety lock, one clear ABS file box, one CPR Board, one Needle Disposal Container, two Plastic Flip Waste Bins.
The right side of the cart equipped with Side hidden Plate, and the aluminum alloy handrail equipped at the left side making push the cart easier.
4 dia.100mm castors, 2 with brake, outer adopts ABS anti-winding system.
Adopts aluminium alloy pillar. Side boards and back board adopt 4mm ABS engineering aluminium-plastic plate.
Top and bottom boards use ABS engineering plastic, one-time injection molding.
ABS engineering plastic , adopts high quality three-section mute chute with the function of self-locking in the rear, the effective telescopic distance is 60cm. Inner equipped with movable ABS plastic partition and the standard identification card.
Three different kinds of movable plastic baskets which can be combined at will with the drawer. Each basket can bear 60kg at least.
Three sizes of the plastic basket:
S:L400mm*W600mm*H50mm,
M:L400mm*W600mm*H100mm,
L:L400mm*W600mm*H200mm
The adjustable IV pole uses Φ 16 stainless steel round tube.
