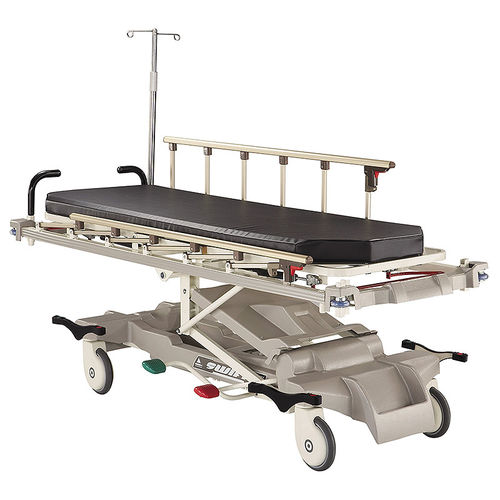

Emergency stretcher trolley BT-500

hydraulicheight-adjustablewith adjustable backrest

Specification : Overall Size: L2180 x W805 mm Support Mattress Platform: L1920 x W620 mm Platform Surface: 4 Sections Backrest 0-90˚ (Pneumatic assisted) Knee-break 0-40˚ (Crank assisted) Up-Down: 550 - 970 mm Trendelenburg & Rev. Trendelenburg: ±25˚ (Pneumatic-Handle type) Single Pedestal Hydraulic mechanism Hydraulic Foot pedal are located in each side of bed Foam mattress cover with synthetic leather (Thick: 3”) Frame: made by steel with Electrodeposition and Anti-Bacterial Powder Coating Corner rotary wheel (bumper) x 4 pcs ABS Collapsible Side Rails (3/4 Length) x 1 pair I.V. Socket x 1 Bed chassis cover with integrated wear-resisting Plastic injection High quality 8" wheel (inclusive of central brake & steer system) Two Sections I.V.POLE (2 Hooks) x 1 units Option: Head Section: use X-ray transparent platform Option: Full Section: use X-ray transparent platform ± 5% tolerance for above
