Flow control panel 7167400A

pressuregas supplymedical

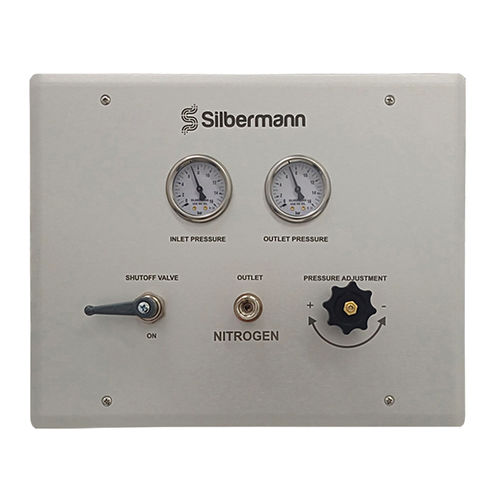

The SILBERMANN medical gas control panel supplies adjustable pressure, as required, to pneumatic-driven surgical tools in the operating theaters. Silbermann’s gas control panel is designed to meet the latest and most rigid American NFPA99 and European EN ISO 7396-1 requirements. FEATURES Compatible with Nitrogen or Industrial Air. Easy, safe, and reliable connection between the medical equipment and the medical gas distribution system. Anodized Aluminum front with rounded edges for aesthetic appeal. Manual shut-off valve. Inlet & outlet pressure gauges. DISS or NIST outlet connection. A Knob to adjust the outlet pressure. TECHNICAL DATA Panel: 3 mm anodized Aluminum plate Compatible with Nitrogen or Instrument Air Box: Galvanized steel case, powder-coated Ral 9016 (White) Inlet Pressure Guage: 0 - 25 bars Adjusted Pressure: 0.5-16 bar. Flow Capacity: 70 m3/h @ 10 bar 90 m3/h @ 16 bar MEDICAL GAS SYSTEM STANDARDS: NFPA99, EN ISO 7396-1 SILBERMANN’S QUALITY MANAGEMENT SYSTEM: ISO 9001-2015 ISO 13485-2016 CE MARKED
