Medical gas manifold Mazor-AU

automaticsupplychangeover

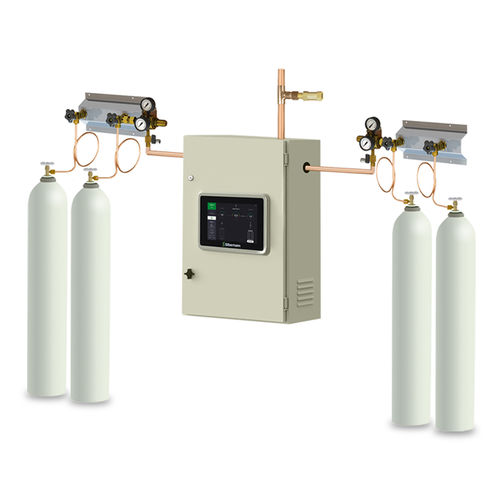

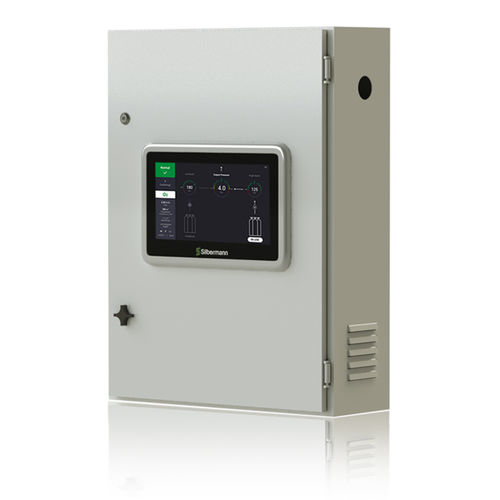

The SILBERMANN Fully Automatic Medical Manifold system is a new approach to medical gas management. It employs advanced electronic system technology that redefines the state-of-art for modern healthcare facilities. We designed this system to be reliable and supply continuous gas flow and smooth automatic bank switchover through a pneumatic shuttle valve. The Mazor-AU is designed for backups or as a main supply system where central systems are not available. All medical gas information is displayed graphically and digitally on a 12" full HD LCD touch screen. This Advanced changeover system is designed to meet the NFPA99, or EN ISO 7396-1, or HTM02-01 standard. FEATURES ■ Continuous supply and smooth automatic bank switchover, without pressure fluctuation, using a pneumatic shuttle valve. ■ Maintenance friendly- designed to enable maintenance during operation without the need to disrupt the gas supply. ■ LCD 12” touch screen display. ■ Graphically & digitally display the actual status of each source- “In use” or “Stand by”. ■ Visual & audio alarm signals in case of change between banks, “Below min” and High/Low line supply pressure. ■ Leak detection from manifolds on Stand-By mode. ■ Event logging, recording all alarms and panel activities. ■ Periodical maintenance alert. ■ Secured Ethernet-based network communication between all units. ■ Unique secured authentication of each unit to avoid fake/masking of alarms. OPTIONAL ■ Flow & Consumption - Monitors & display flow rate and consumption of medical gas. ■ Customozable text & language. ■ Remote monitoring through building management system available.
