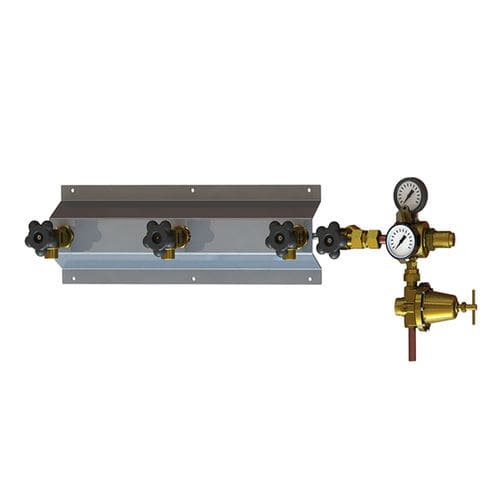

Medical gas manifold

supply

Manifold is used in facilities which require low usage of medical gas. Our manifold is designed for the supply of continuous and smooth gas flow at the pressure of up to 8 bars (higher outlet pressure upon customer request). Features & Benefits ■ Gas Type - O2, Air, N2O, CO2, N2 ect. ■ Outlet Pressure - 3-12 bar. ■ Inlet Pressure (Max) -200 bar. ■ Piping System: All materials are oxygen compatible and cleaned for oxygen use. ■ Flow Capacity: Oxy/medical air (4 bar) - 90 m³/hr/ 120 m³/hr. ■ Pigtail for each cylinder valve. ■ Optional: ■ Main hi-pressure shut-off valve. ■ Relief valve. ■ Pressure switch Applicable standards: ■ NFPA99, EN ISO 73961-1 & G0-1 requirements. Silbermann’s Quality management system: ■ ISO 9001-2015 ■ ISO 13485-2016 ■ CE marked
