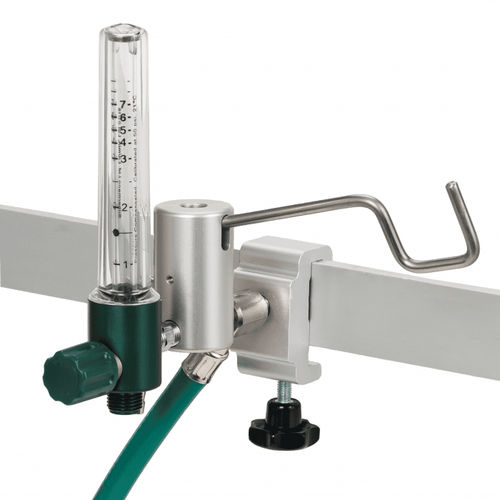

Variable-area flow meter 4116 series

O2for hospitalsrail-mounted

In critical care units where resuscitation activities require usage of Ambu with an instant oxygen supply, SILBERMANN's switch-off valve provides the ideal solution. The oxygen switch shut-off valve is used with an AMBU bag connected to an auxiliary valve. When the bag is lifted from the lever arm, the Instant flow valve provides oxygen at a 25 liter/min flow rate. When the bag is returned to the arm the flow stops immediately. The flowmeter is independent and can be operated regardless of the position of the lever arm. Features & Benefits Instant Oxygen supply via switch-off valve when the Ambo lever released Variable flow rates available through an auxiliary valve Available with either adult Both flowmeter types with Oxygen DISS male outlet Flowmeter tubes include a non-linear scale enabling a clear & accurate operation in the working range Different probes available Reliable, accurate, and easy to use Non-erasable laser engraved product info Rail mounted type includes: 1-meter plastic medical tubing, universal clamp and probe. Silbermann’s Quality Management System: EN ISO 13485-2016 ISO 9001-2015 CE marked Technical Data Main Materials: Flowmeter body: Anodized Aluminum* Flowmeter Cover: Transparent non-breakable polycarbonate. Measuring tube: Transparent non-breakable polycarbonate Switch off valve: Anodized Aluminum. Auxiliary Outlet: Nipple gland * Brass available on special request
